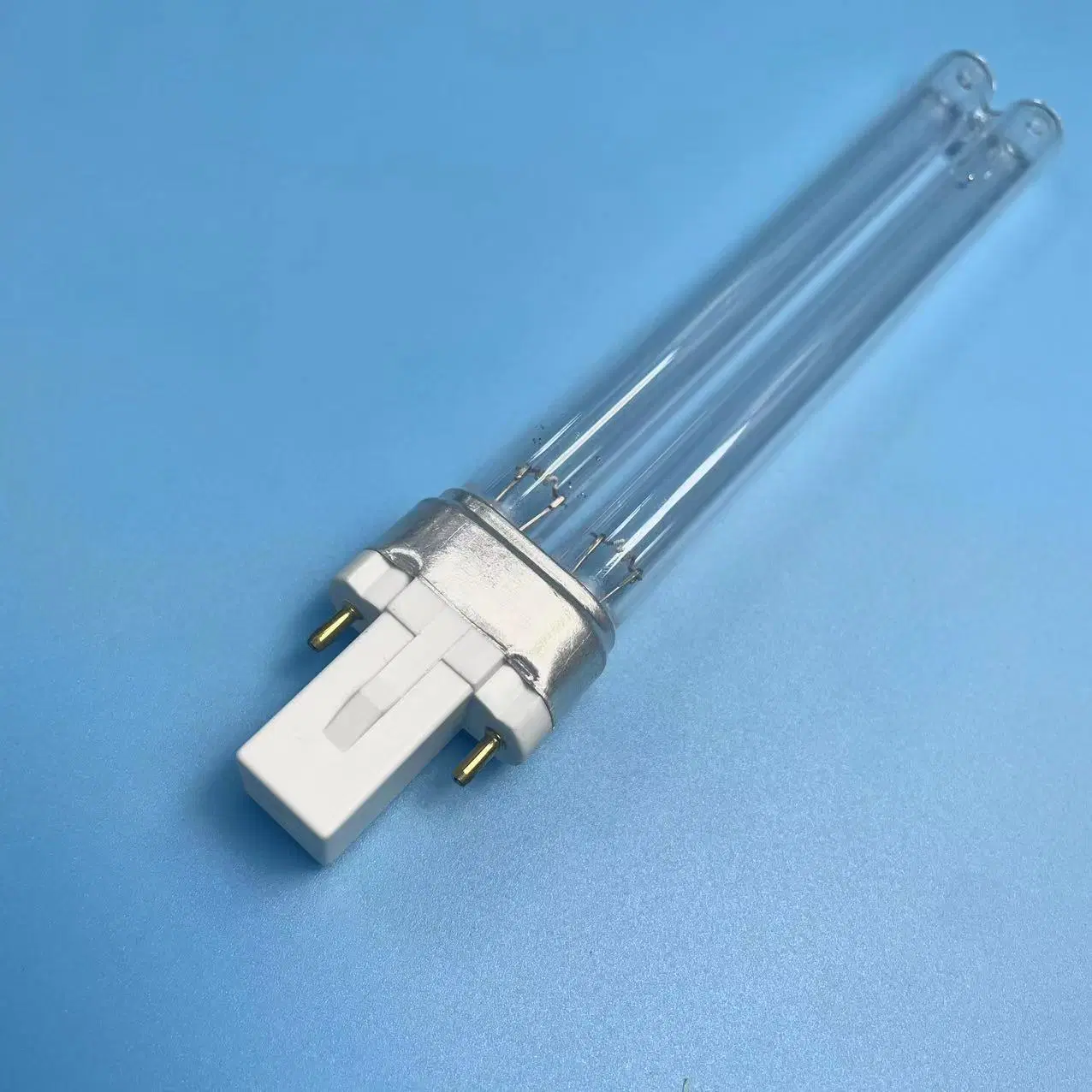

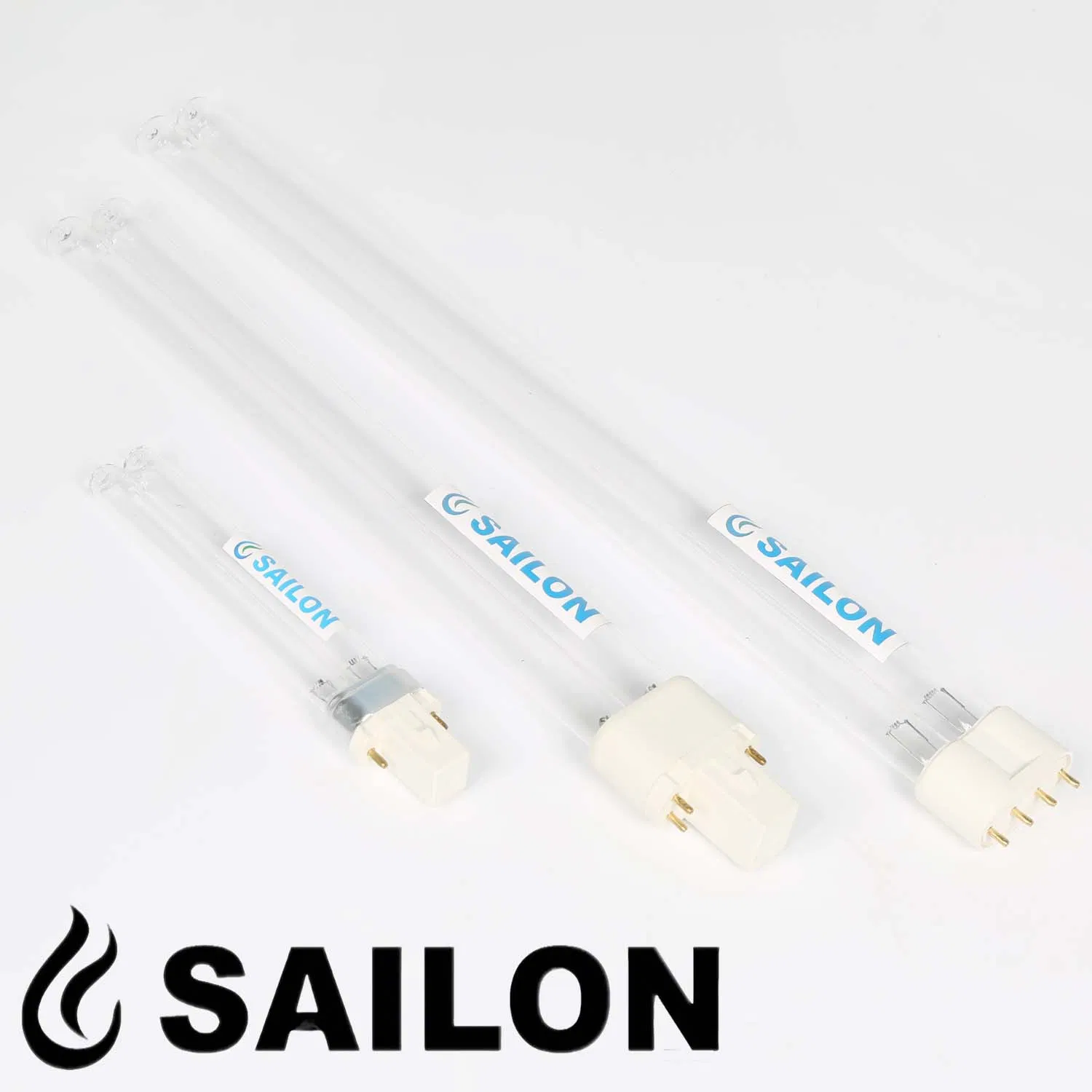

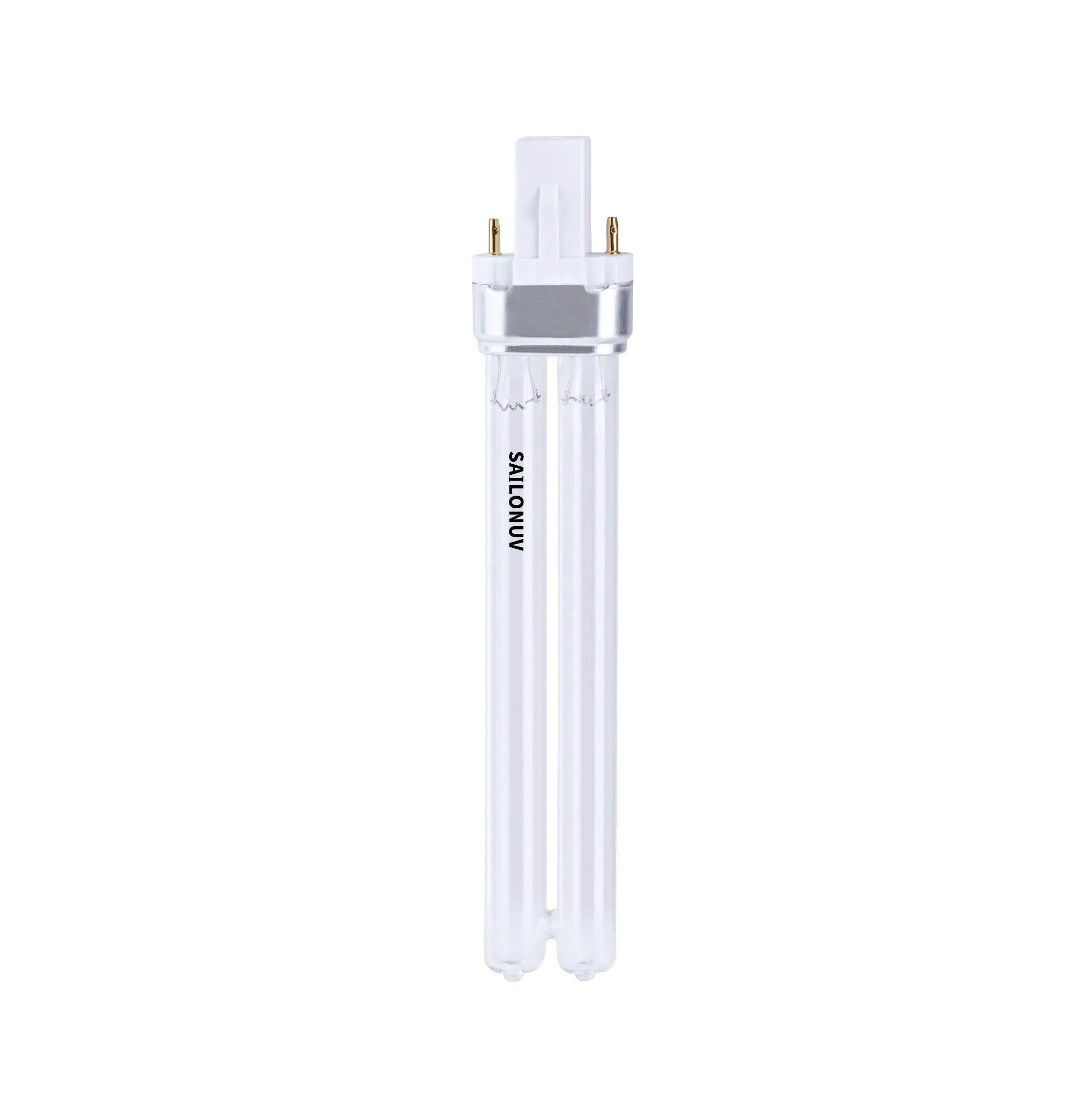

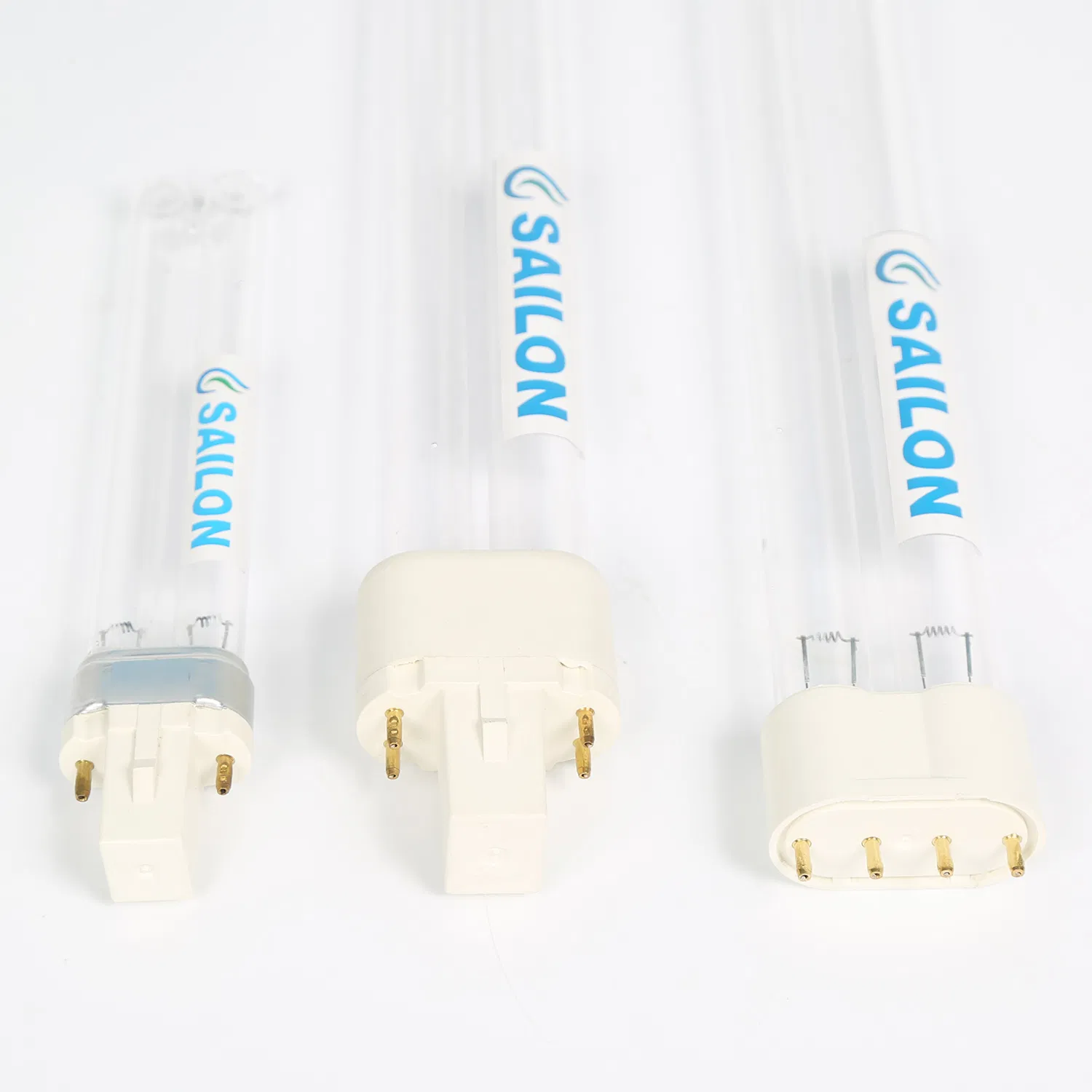

CE/RoHS Certificate TUV 9W G23 2g7 Base Pl-S9w UV Germicidal Lamp for Aquarium Disinfection.
Product Description
Basic Information

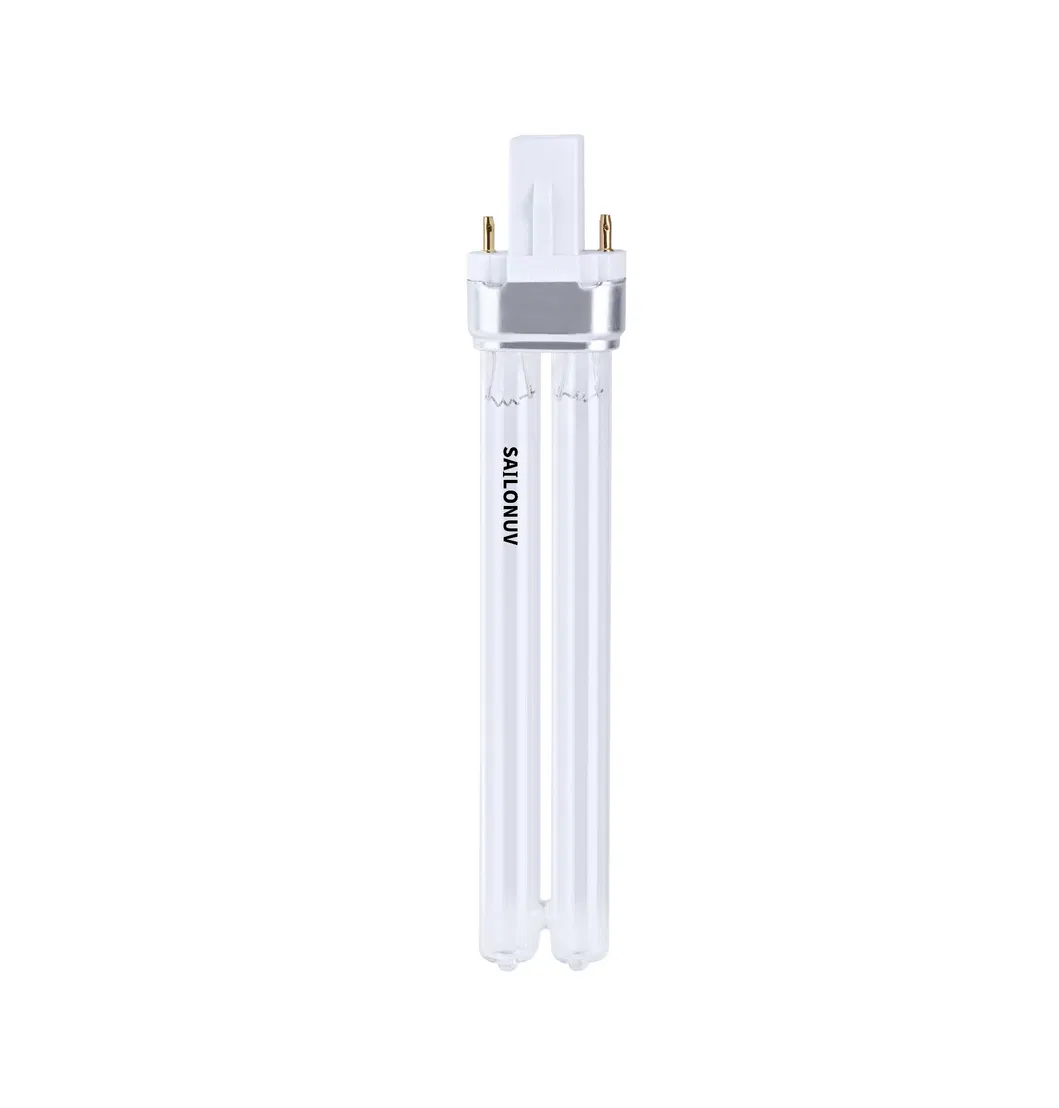

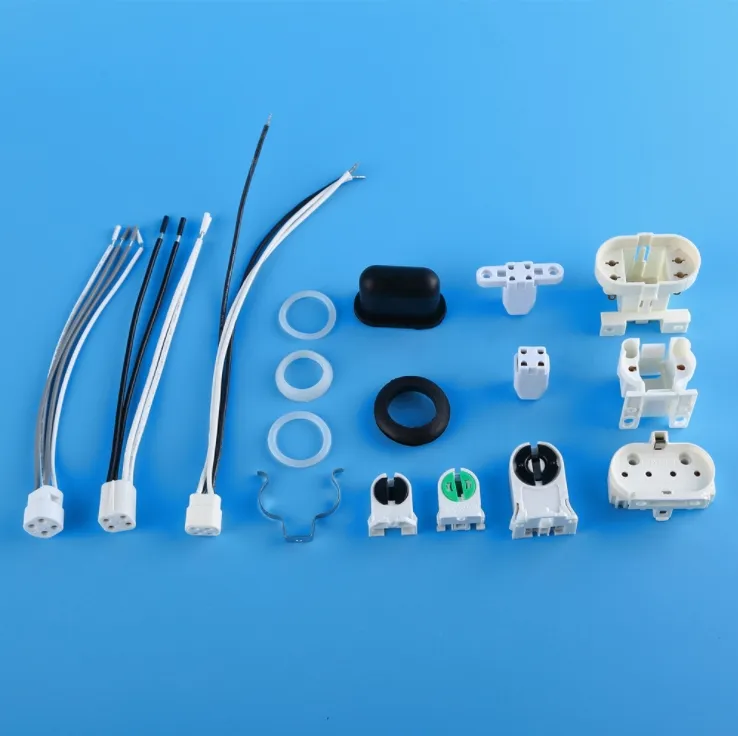

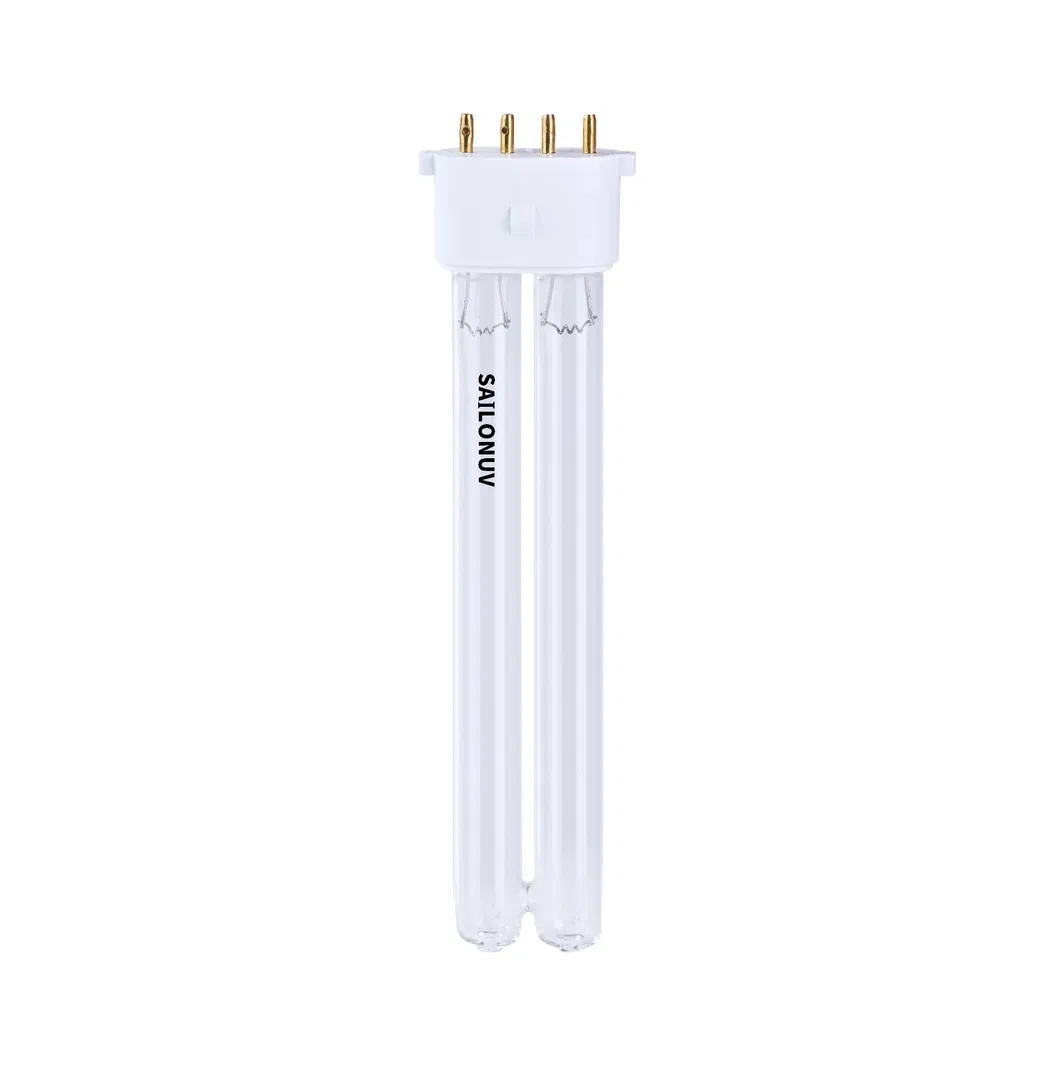

Detailed Photos
Technical Parameters
| Type | Tube Dia (mm) | Length (mm) | Power (W) | Voltage (V) | Current (mA) | UV Output (W) | Lamp Base | Standard Life (H) |
|---|---|---|---|---|---|---|---|---|
| PL-S5W | 12 | 85 | 5 | 34 | 180 | 1.1 | G23/2G7 | 9000 |
| PL-S7W | 12 | 115 | 7 | 47 | 175 | 1.5 | G23/2G7 | 9000 |
| PL-S9W | 13 | 145 | 9 | 60 | 170 | 2.4 | G23/2G7 | 9000 |
| PL-S11W | 13 | 214 | 11 | 89 | 160 | 3.6 | G23/2G7 | 9000 |

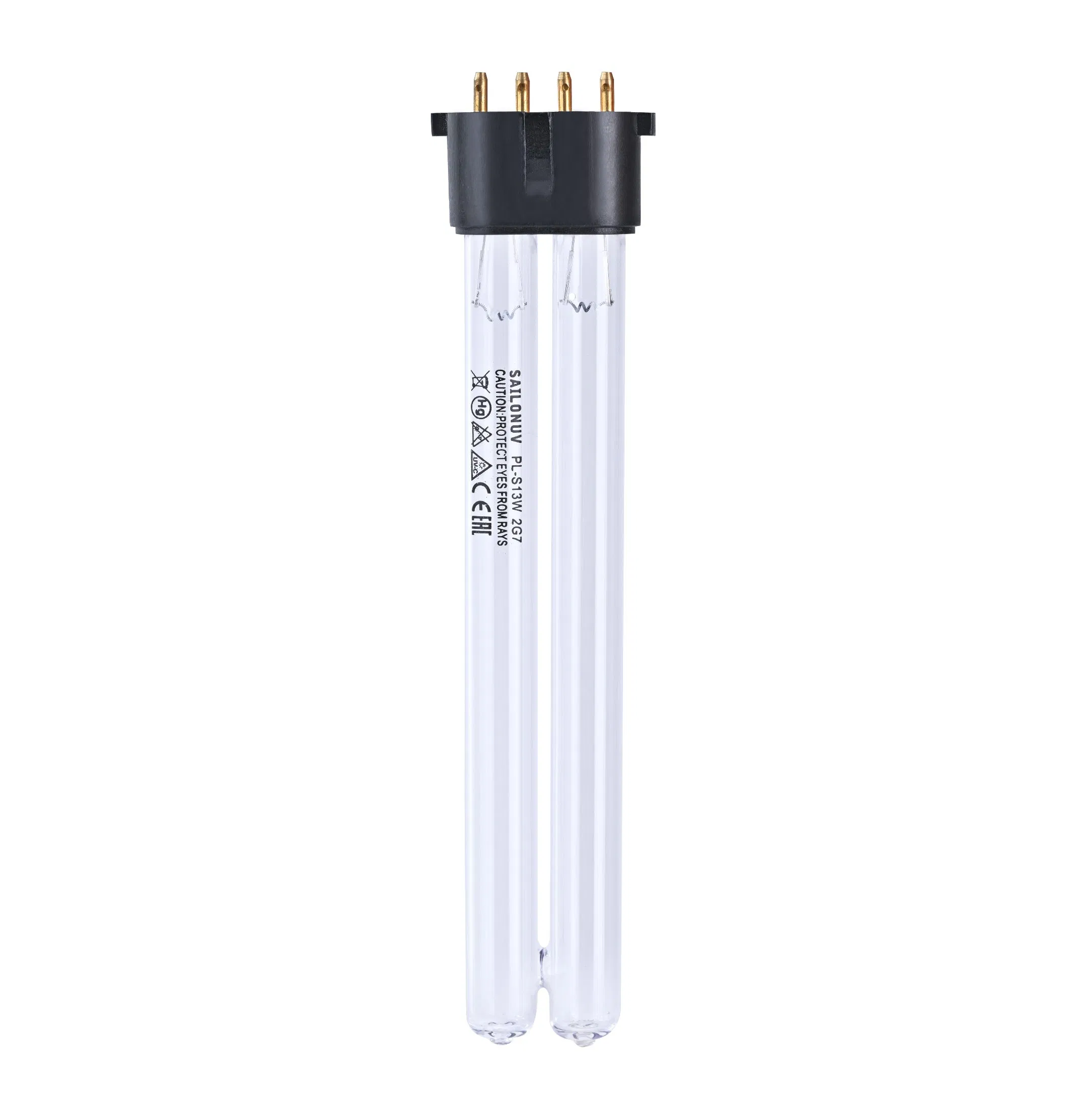

| PL-S13W | 13 | 155 | 13 | 60 | 290 | 3.4 | GX23/2G7 | 9000 |
| PL-L18W | 17 | 217 | 18 | 60 | 370 | 5.8 | 2G11 | 9000 |
| PL-L36W | 17 | 410 | 36 | 105 | 440 | 12.0 | 2G11 | 9000 |
* The PL-S type H shape UV tubes feature a built-in starter suitable for electromagnetic ballasts. Electronic types are available upon request.
Product Description
The Principles of Disinfection:
UV-C, known as germicidal UV ray, destroys the DNA of viruses, bacteria, and other microorganisms, causing them to lose reproductive ability. It is particularly effective against microorganisms in air and water.
Special Features:
- Ozone and ozone-free types available for selection.
- Produced with high-purity quartz glass, ensuring up to 98% UV output rate.
- Applications: Ultraviolet Sterilizers for Aquariums, Ponds, and Water Filters.
Certifications
Manufacturing Process
Material Selection
High-quality quartz or glass tubes and premium electrical components like electrodes are selected.
Tube Preparation
Tubes are cleaned and polished to ensure maximum transparency for UV light transmission.
Electrode Placement & Sealing
Electrodes are positioned and the tube is sealed using specialized techniques to ensure it is watertight.
Quality Control & Testing
Rigorously tested for electrical functionality and UV wavelength accuracy.
Packaging & Shipping
