UV Ink Drying System 395nm Water Cooling UV LED Curing Lamp for Paper Printing
Product Description
Basic Info
Product Description

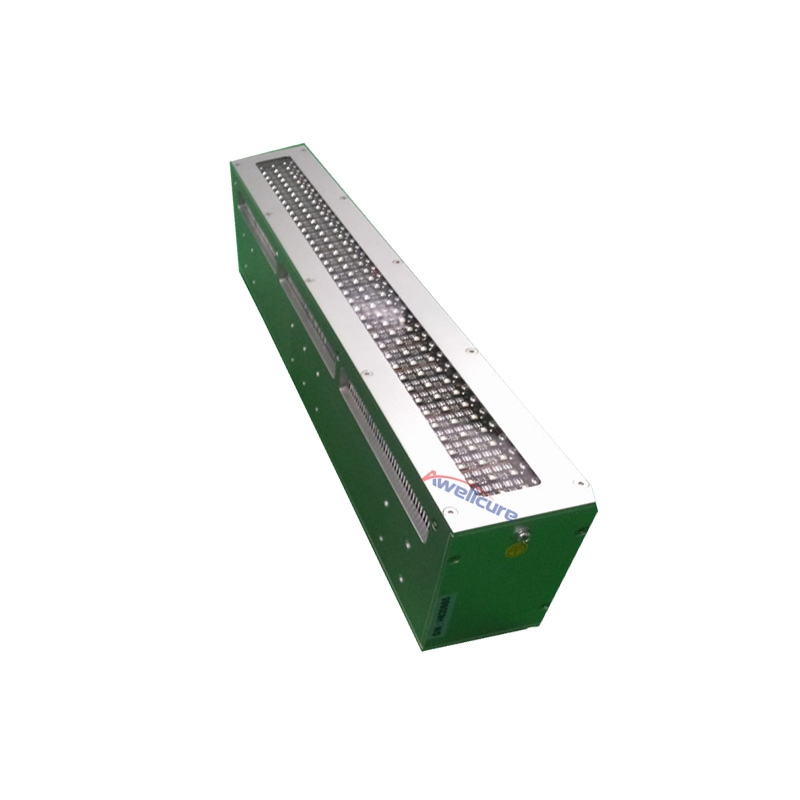

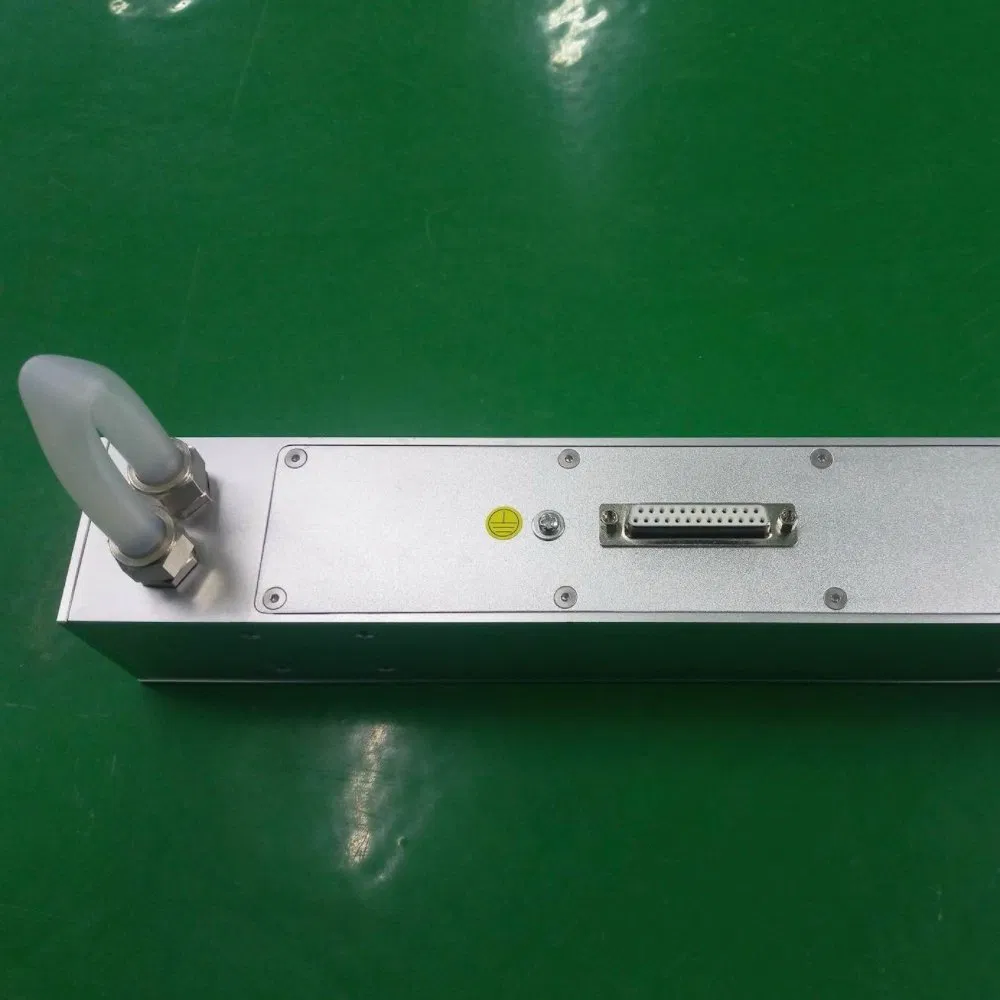

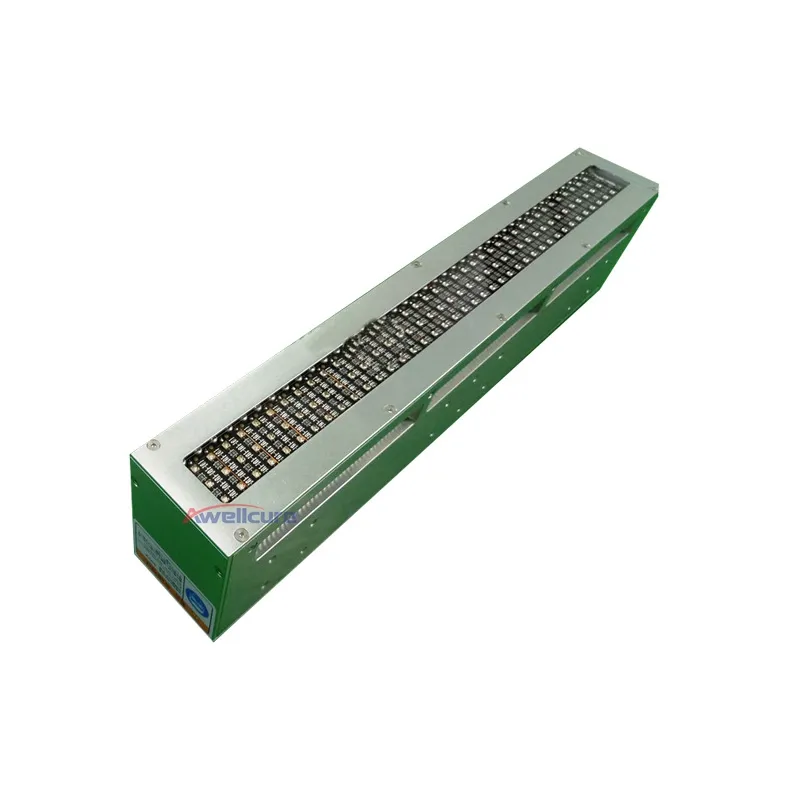

Uv Ink Drying System 395nm Water Cooling UV LED Curing Lamp for Paper Printing
Product model: AW30400H
Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

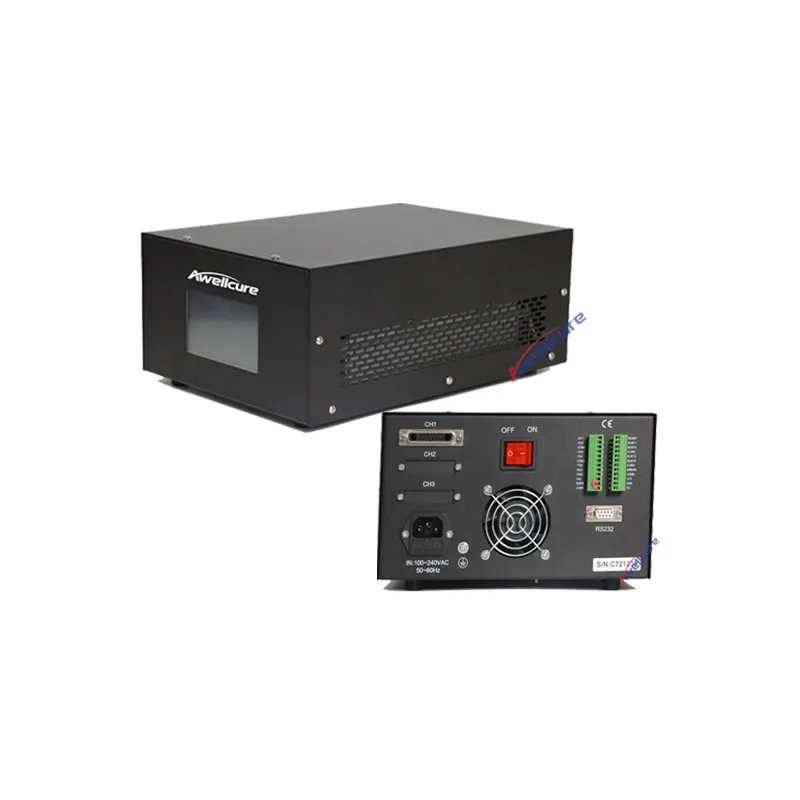

Features of Controller
- External input signal controls UV irradiation via MCU, PLC, or scanner.
- Status LEDs for Start, Stop, Working, and Alarm signal outputs.
- RS232 interface for programming and updates via PLC or PC.
- Direct lighting control via foot switch or sensor connection.
Advantages of UV LEDs
- No infrared radiation, ideal for low-temperature materials.
- Optimized spectra for safe and fast curing.
- Instant on/off capability with no warm-up phase required.
Technical Specifications
| Controller Specifications | |
|---|---|
| Voltage | 100-240V AC |
| Material | Pure Aluminum |
| Heat Dissipation | Water |
| Control Method | Touch/Pedal/RS232 Port/PLC |
| Power Range | 10%~100%mW |
| Irradiation Mode | Manual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse |
| Working Temp. | 0-45℃ |

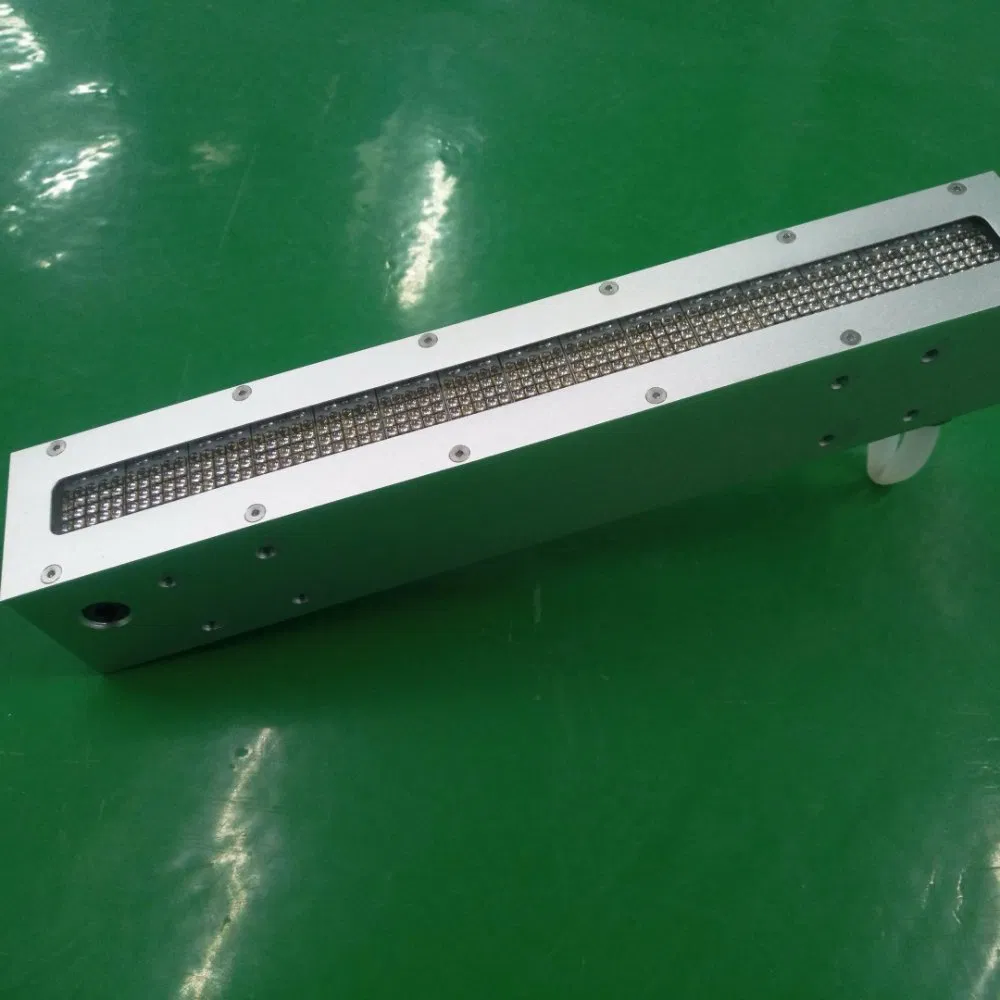

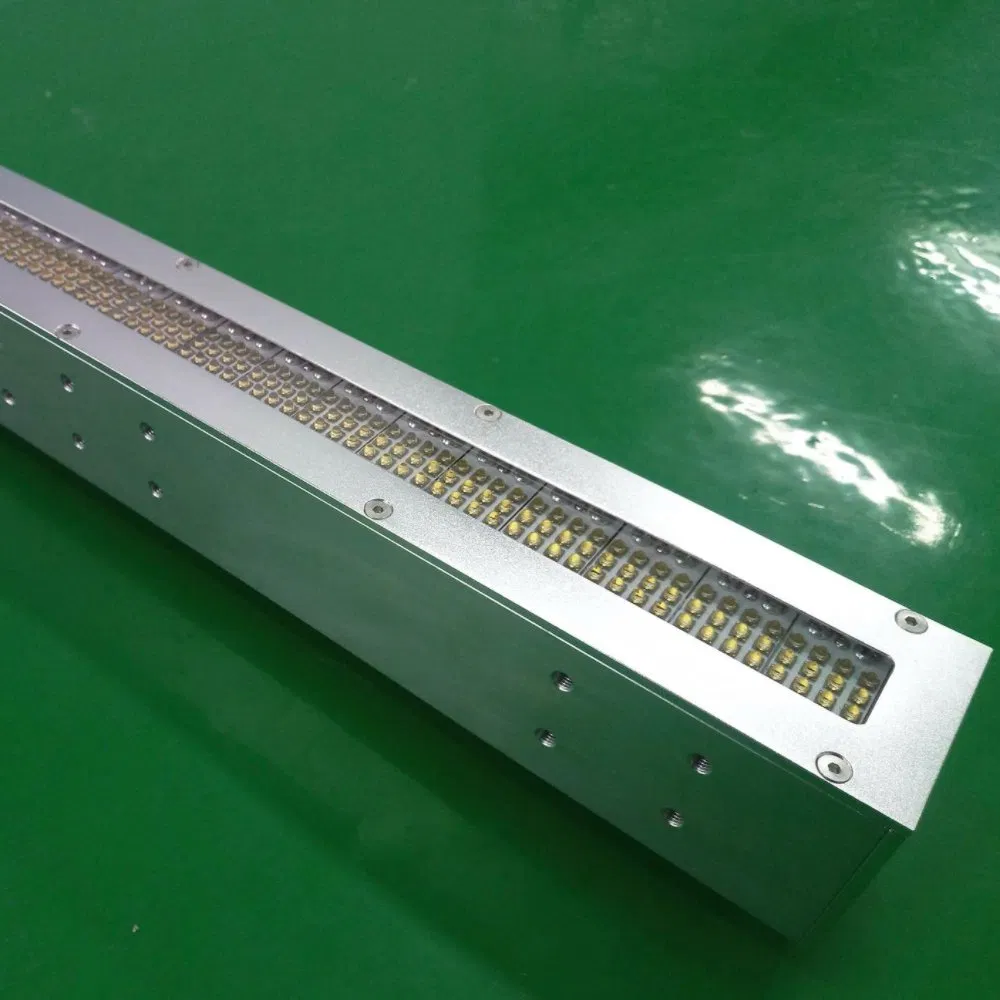

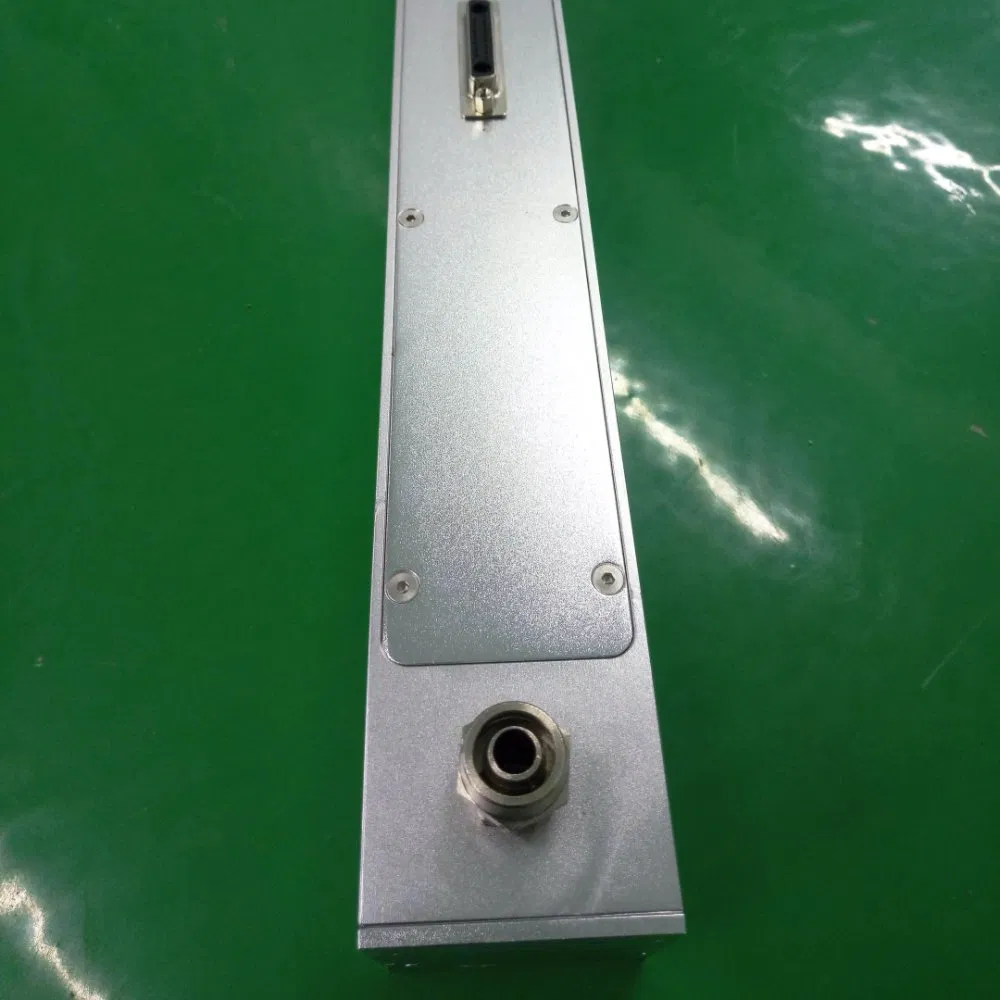

| Irradiation Head Specifications | |
|---|---|
| LED Type | Imported |
| Usage Time | 20000Hrs @80% power |
| Wavelength Range | 385nm / 395nm |
| Luminous Size | 30x400mm |
| Peak Intensity | 14W/cm² |
| Cable Length | Standard 2M/5M or Customized |

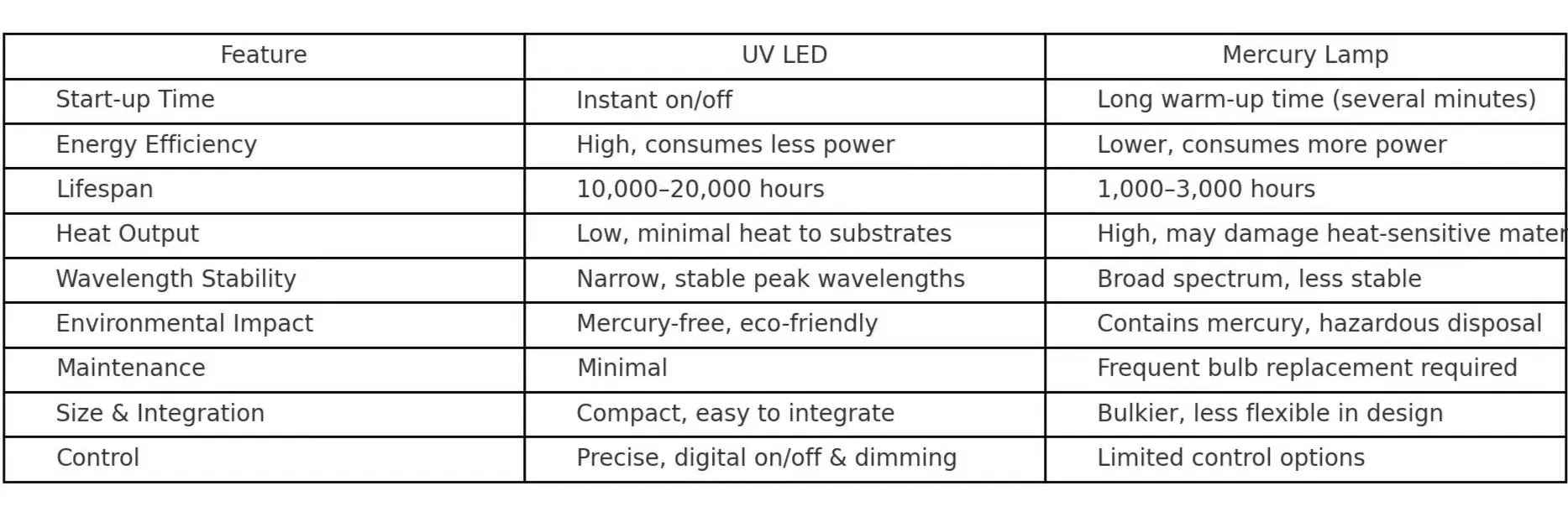

UV LED vs. Mercury Lamp
UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps.

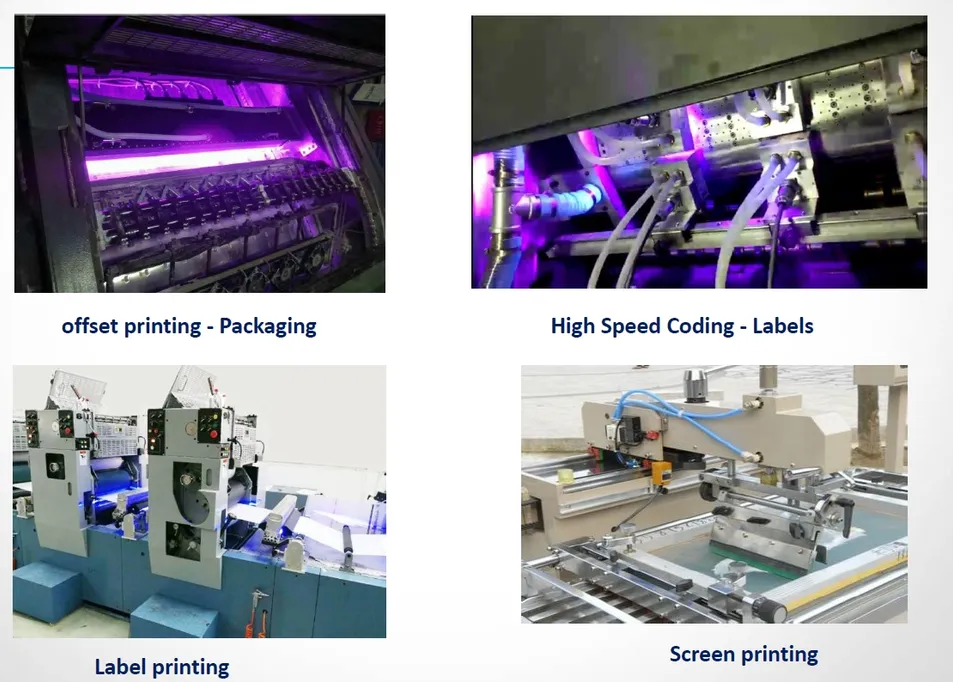

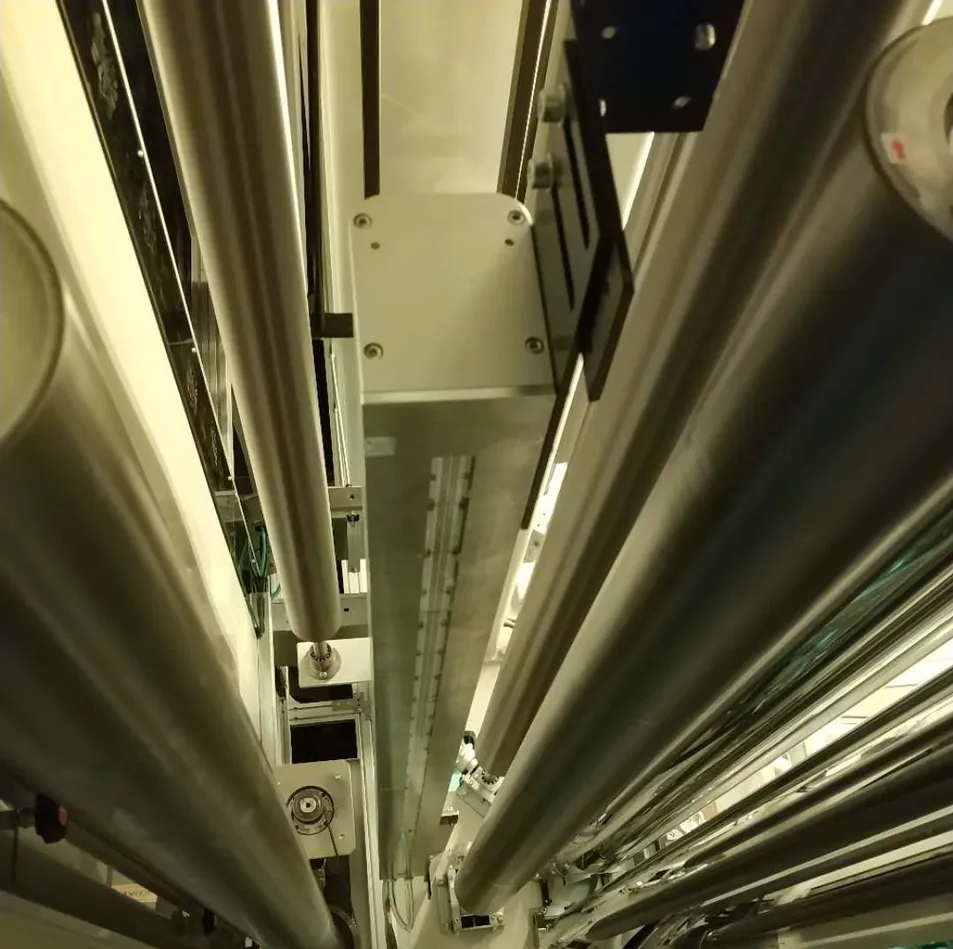

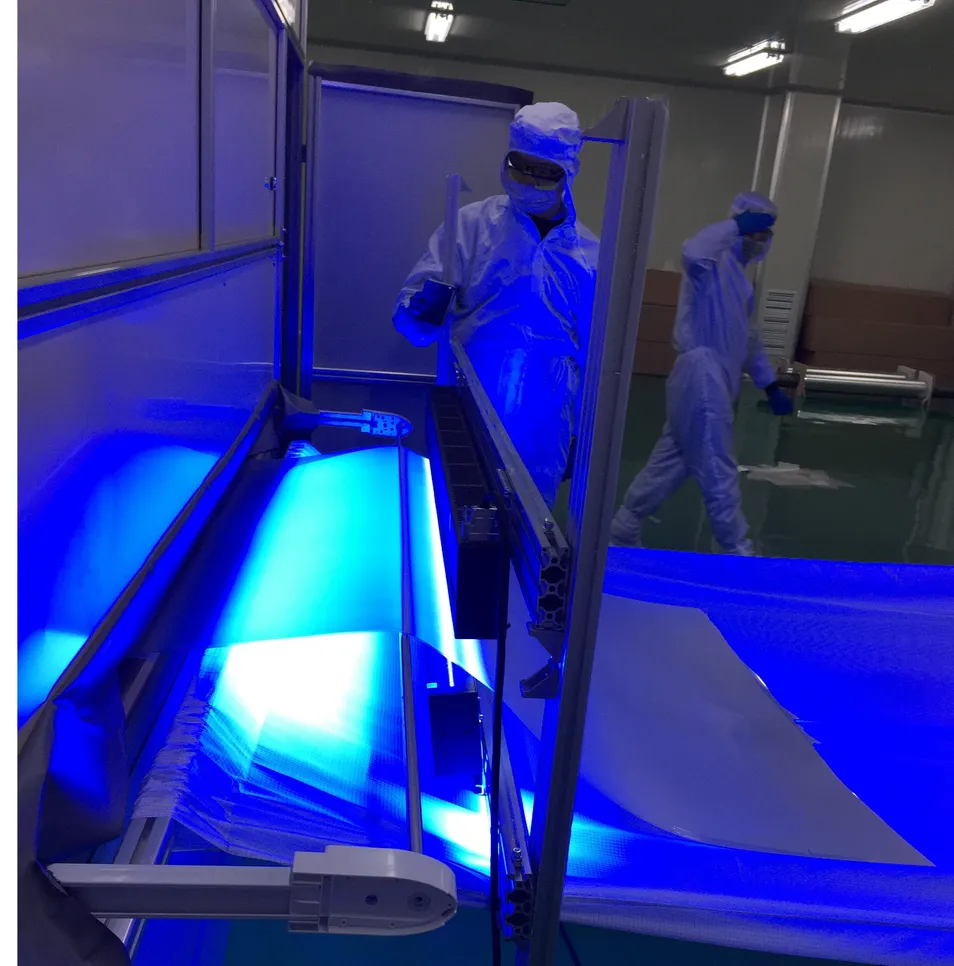

Applications
1. UV Adhesive
Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
2. UV Coating
PCBA, precision machining, Chip packaging, Automotive Industry.

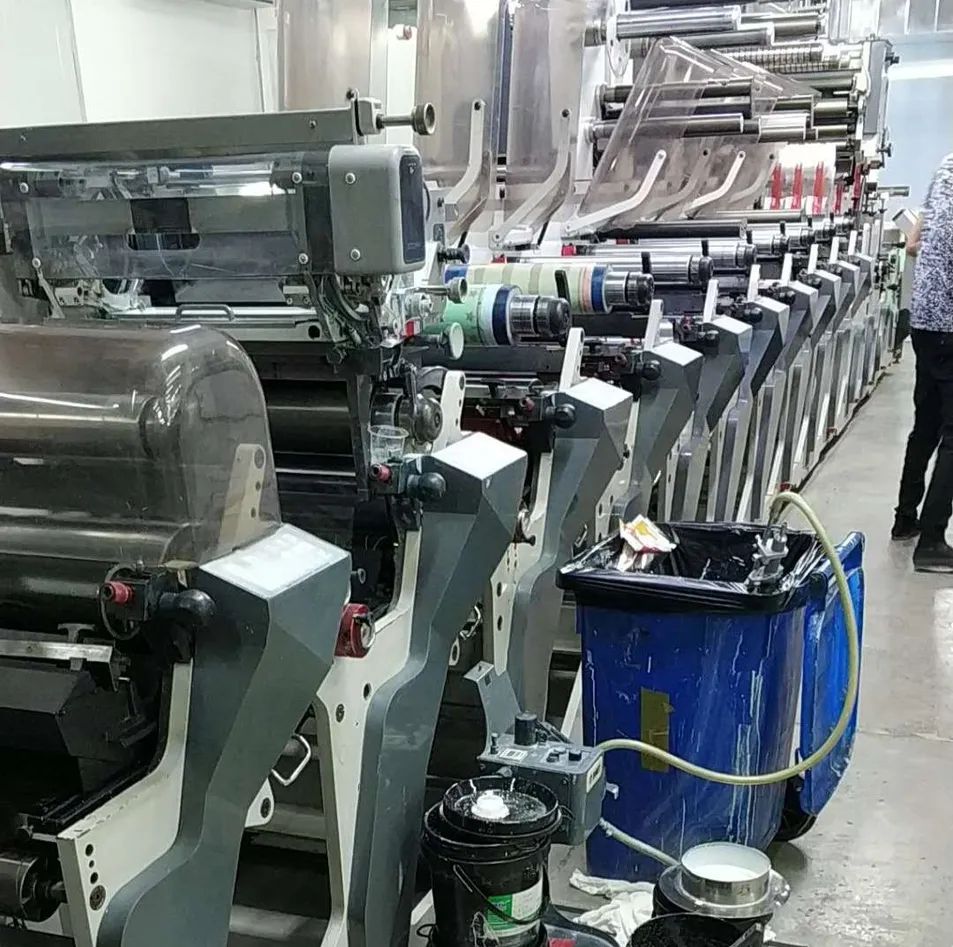

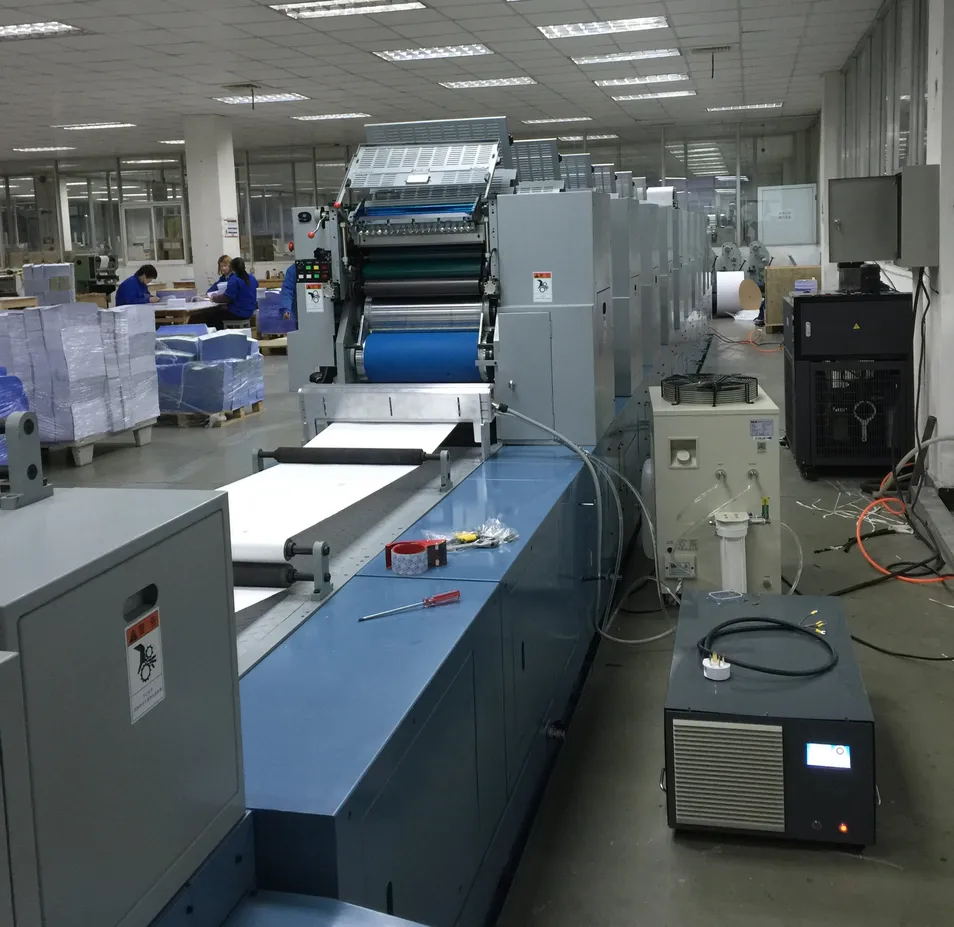

3. UV Ink
UV printing, 3D printing, Flexo printing, digital printing, screen printing.
Service & Support
Standard Warranty: 12 months.
Extended Warranty: Optional up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
- OEM/ODM capabilities
- Competitive pricing
- Fast shipping support
- Turnkey project solutions
