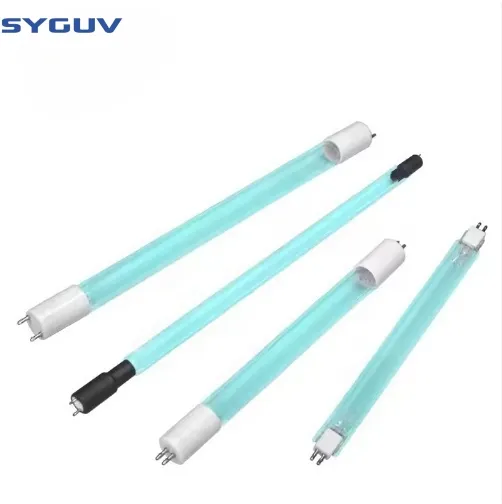

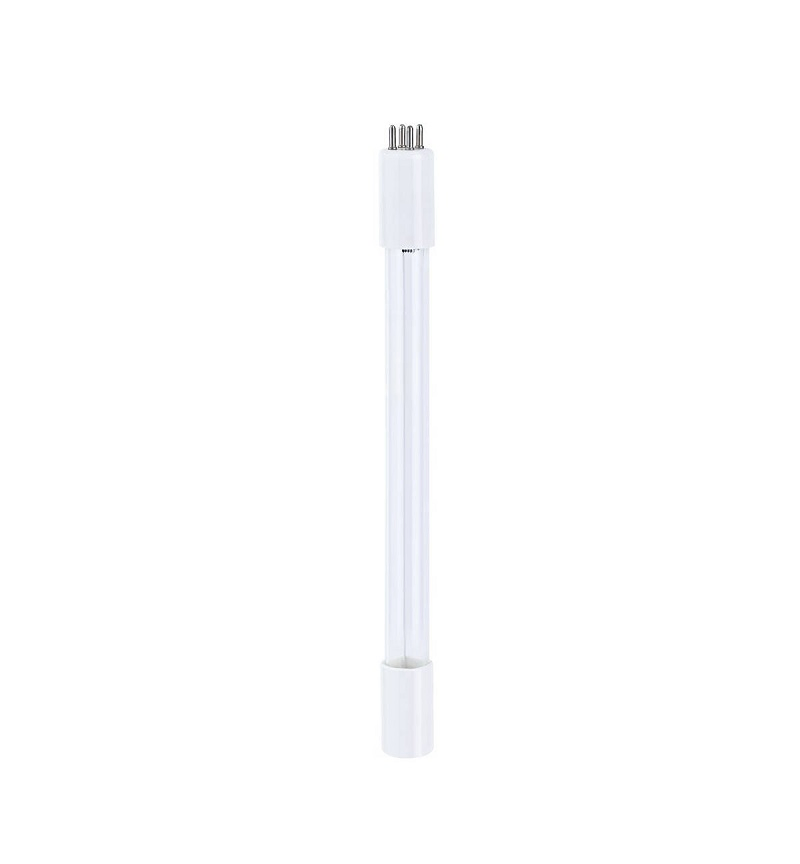

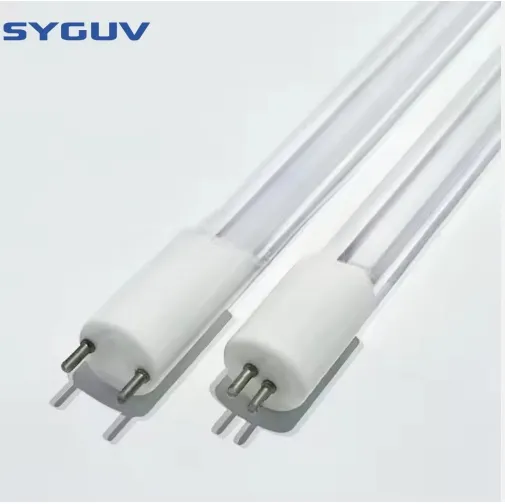

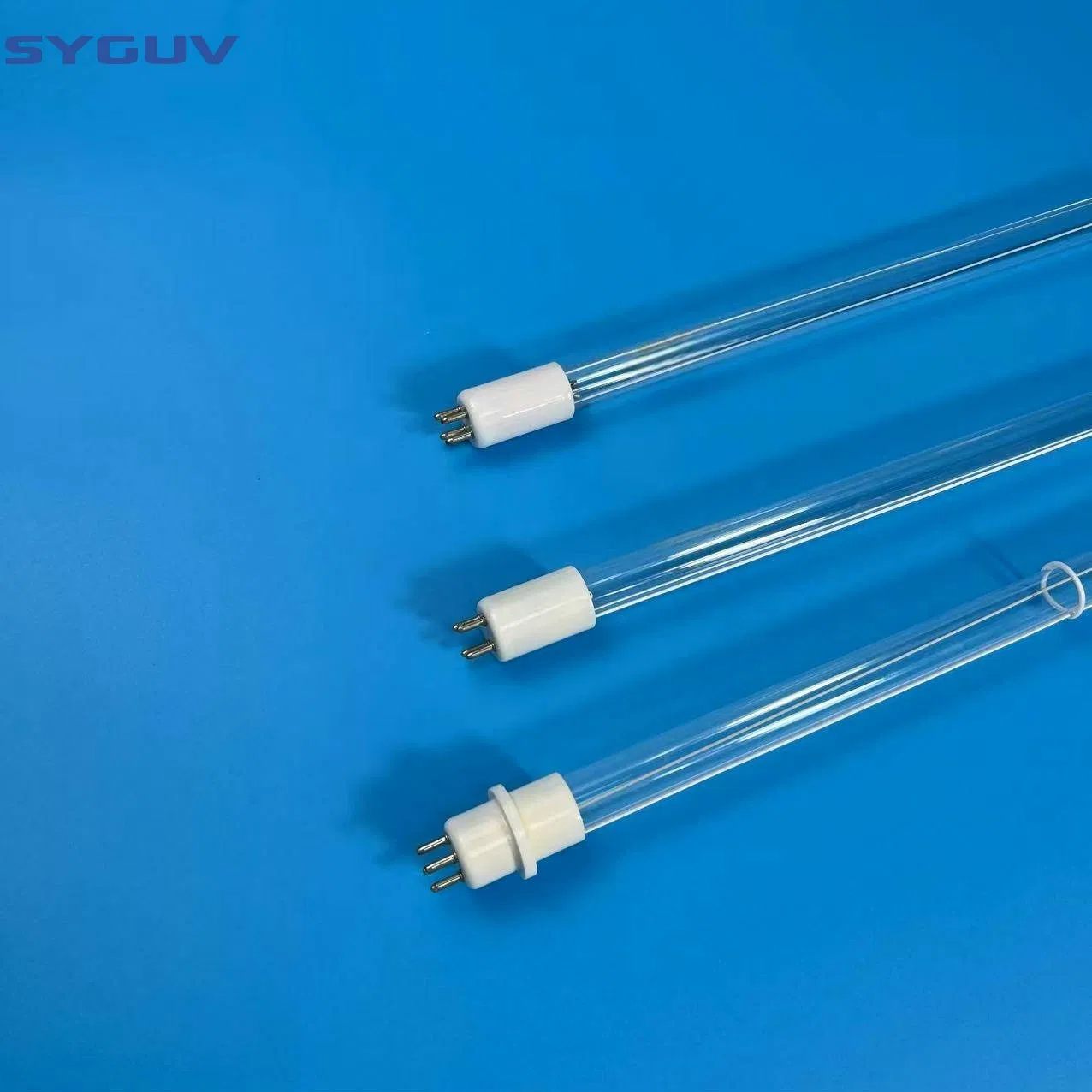

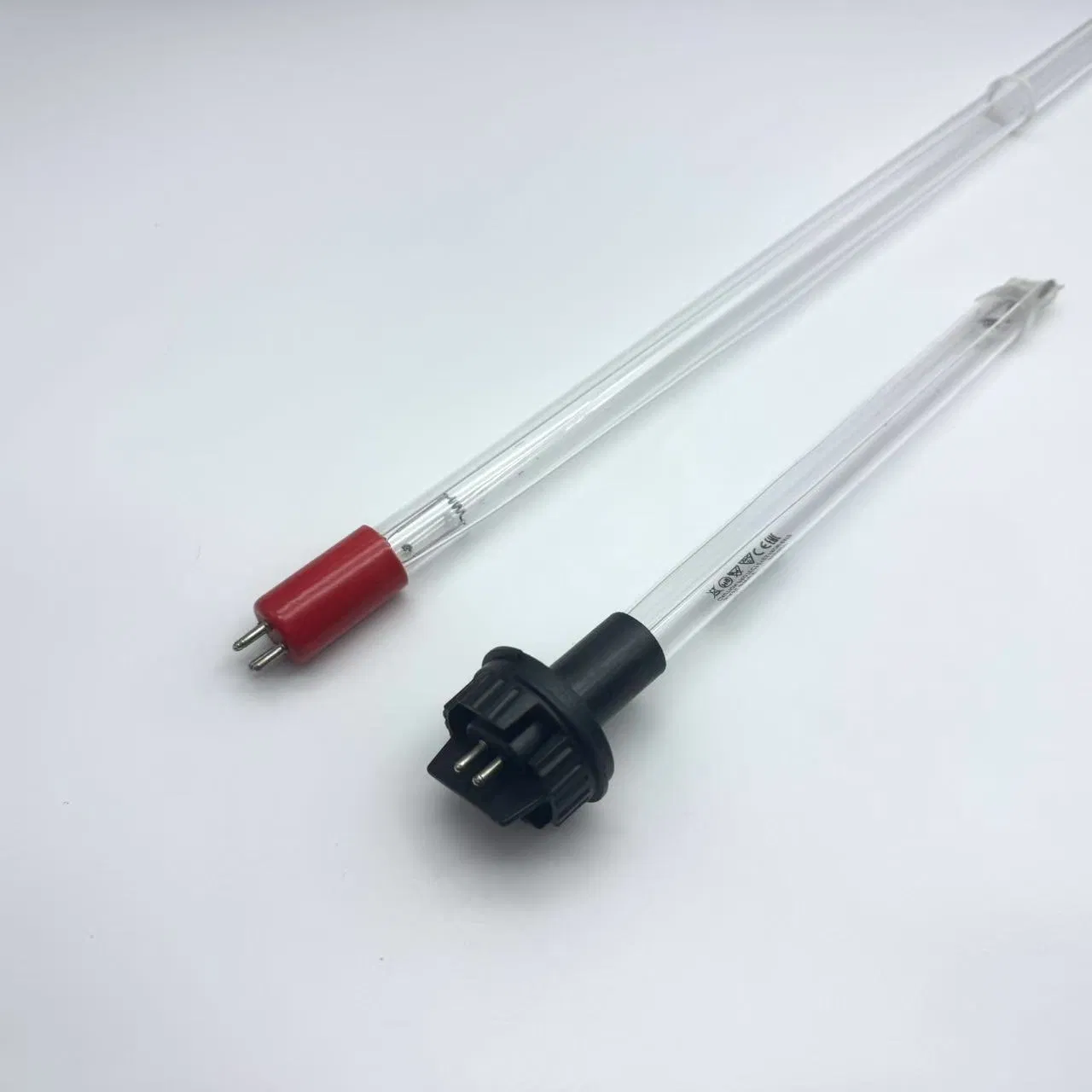

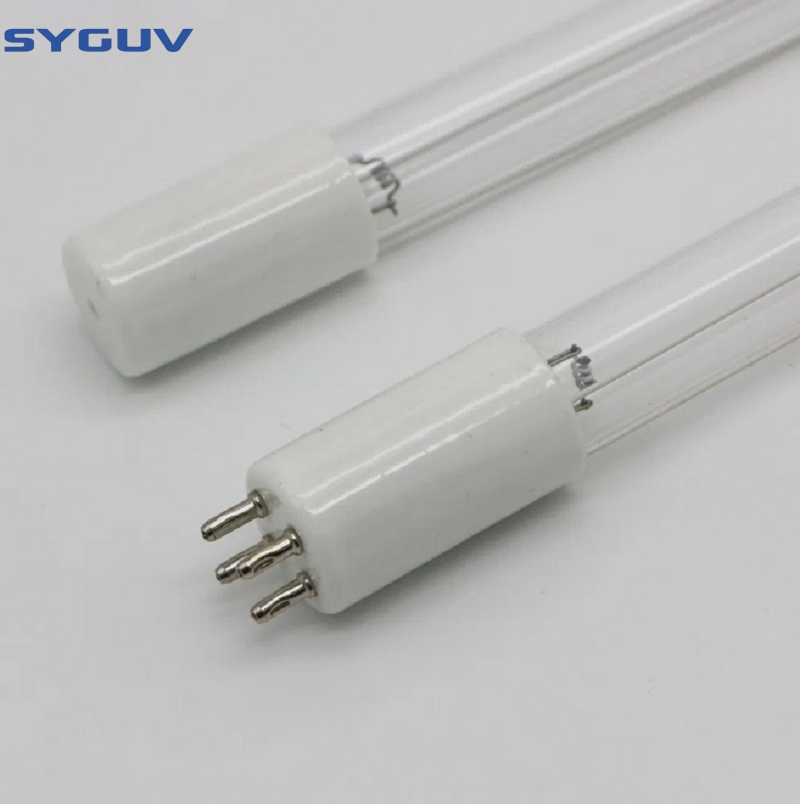

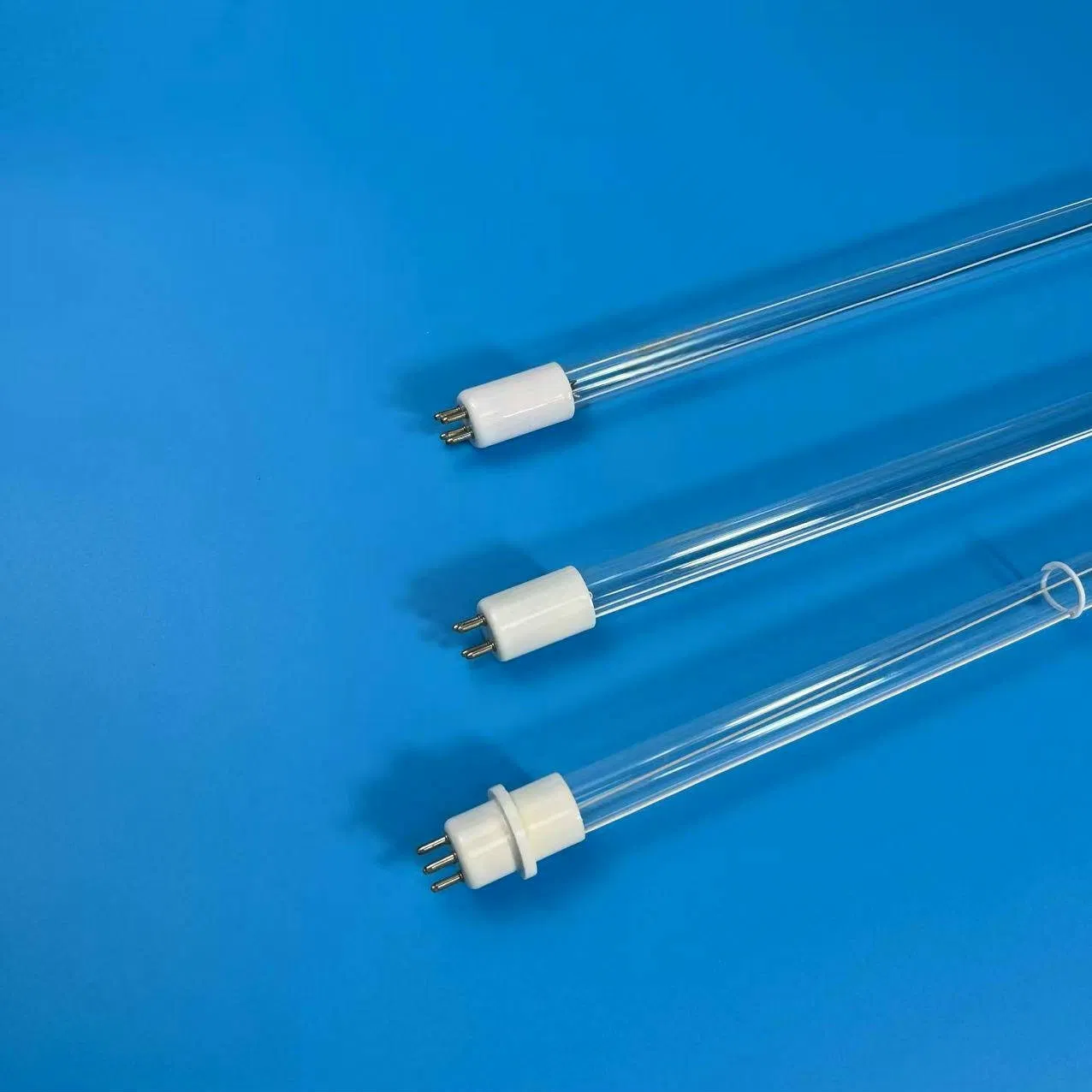

UV Germicidal Lamp 253.7nm UVC 9W G23 Base 270 Degree Rotatable Angle Adjustable Clinic Surface Sterilization Flexible Mounting Gph436t5l
Product Description
Basic Information
Model NO.
GPH436T5L
Wavelength
UV-C
Material
Glass
Certification
CE
Lamp Length
436mm
Lifespan
10000 Hours
Warranty
1-Year
Lamp Diameter
15mm
Input Voltage
220V/110V
Power
21W
Application
Home, Medical, Water Treatment System
Ozone Free
253.7nm
Product Description
Our Advantages & Applications
The PL-S type H shape UV tubes feature a built-in starter suitable for electromagnetic ballasts. Electronic types are available as custom-made orders.
✦ Aquarium disinfection
✦ Pond water disinfection
✦ Air purification
✦ Drinking water treatment
Technical Parameters
| Type | Length (mm) | Power (W) | Current (mA) | Voltage (V) | UV Output (uW/cm²) | UV Output (W) | Base | Life (h) |
|---|---|---|---|---|---|---|---|---|
| G4T5 | 135 | 4 | 170 | 28 | 9 | 0.9 | G5 | 8000 |
| G6T5 | 212 | 6 | 160 | 42 | 16 | 1.6 | G5 | 9000 |
| G8T5 | 288 | 8 | 150 | 56 | 21 | 2.1 | G5 | 9000 |
| G11T5 | 212 | 11 | 330 | 49 | 22 | 2.2 | G5 | 10000 |
| G16T5 | 288 | 15 | 350 | 54 | 36 | 3.6 | G5 | 10000 |
| G15T8 | 437 | 15 | 340 | 51 | 47 | 4.7 | G13 | 10000 |
| G20T8 | 589 | 20 | 360 | 60 | 65 | 6.2 | G13 | 10000 |
| G30T8 | 894 | 30 | 370 | 100 | 100 | 11.2 | G13 | 10000 |
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 30.00cm
Gross Weight
6.600kg
Package Type
Plywood Case
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in lighting products with independent export capabilities.
What is your primary product range?
Our expertise covers special lighting series, including UV lamps, mosquito lamps, germicidal lamps, plant growth lamps, medical blue lamps, and explosion-proof lighting.
How can I verify the product quality?
We provide full support for video inspections and remote verification to ensure product standards meet your requirements.
What are your standard payment terms?
Our common terms are T/T 50% deposit, with the remaining balance due prior to shipment.
What is the warranty period and after-sales policy?
We offer a 12-month warranty from the date of receipt (excluding wear parts). We commit to a 24-hour response time for any technical issues.
Do you offer customization for electronic ballasts?
Yes, while standard models use built-in starters, electronic ballast compatible versions can be custom-manufactured upon request.
