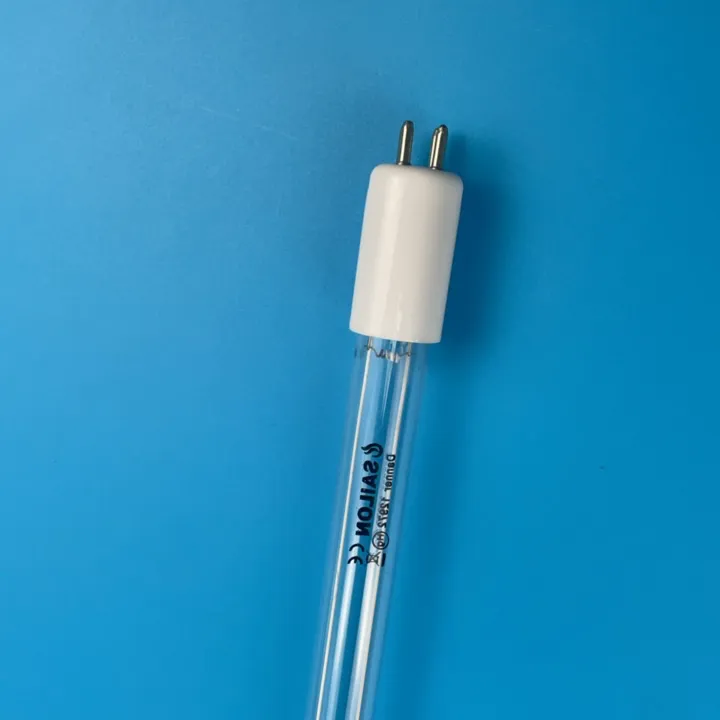

Sailon Gph793t5l 37W UV Lamp for Air and Water Purification
Product Description
Basic Information
| Model NO. | Gph793t5l |
| Wavelength | UV-C |
| Material | Glass |
| Certification | CE, RoHS ISO9001 |
| Long Life Type(H) | 13000h |
| Watt | 37W |
| Bf-Eol (mm) | 793mm |
| Current Ma | 425mA |
| Tub Diameter(mm) | 15mm |
| Voltage | 112V |
| UV Output (254nm) | 120uw/Cm2 13W |
| Production Capacity | 30000PCS/Y |
Product Description

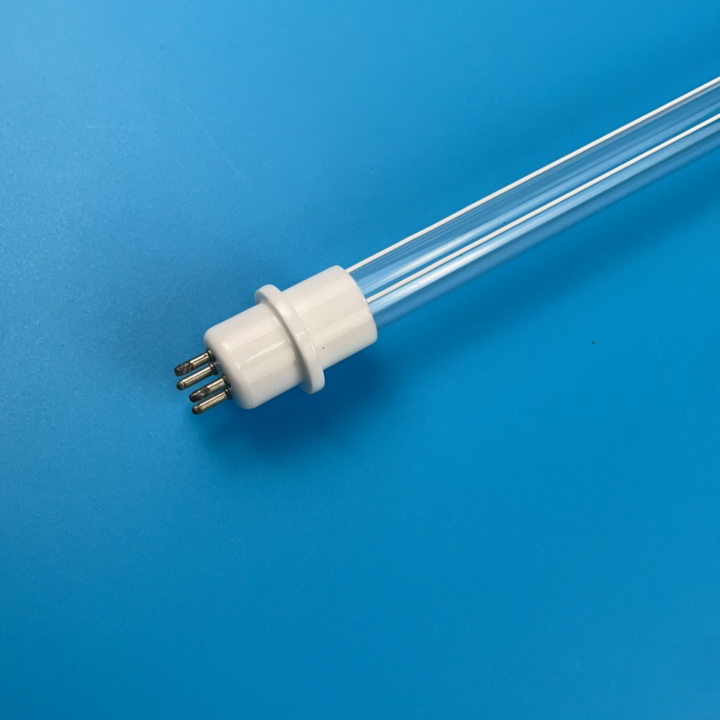

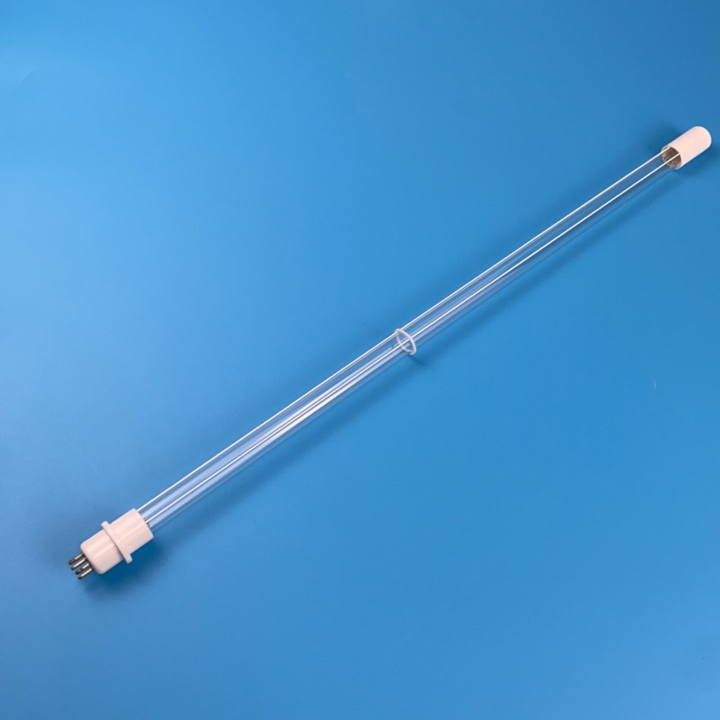

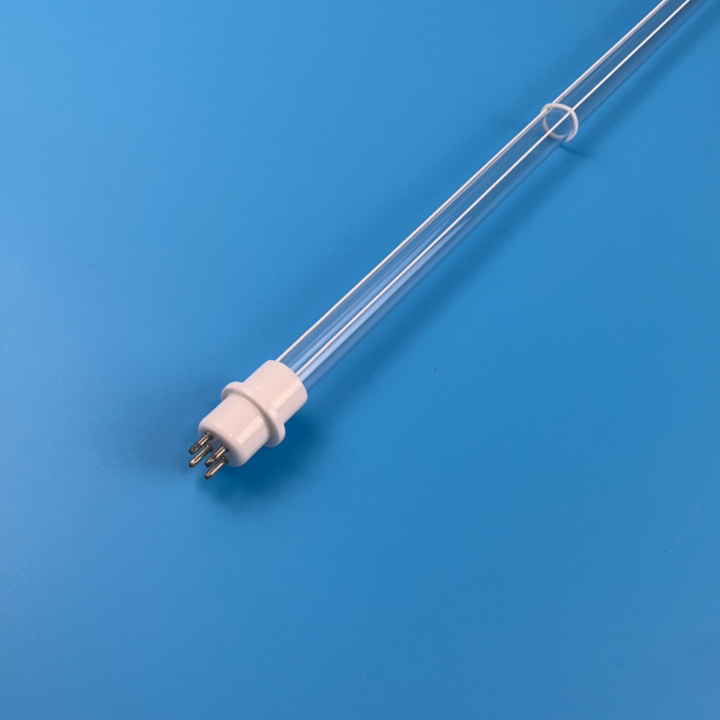

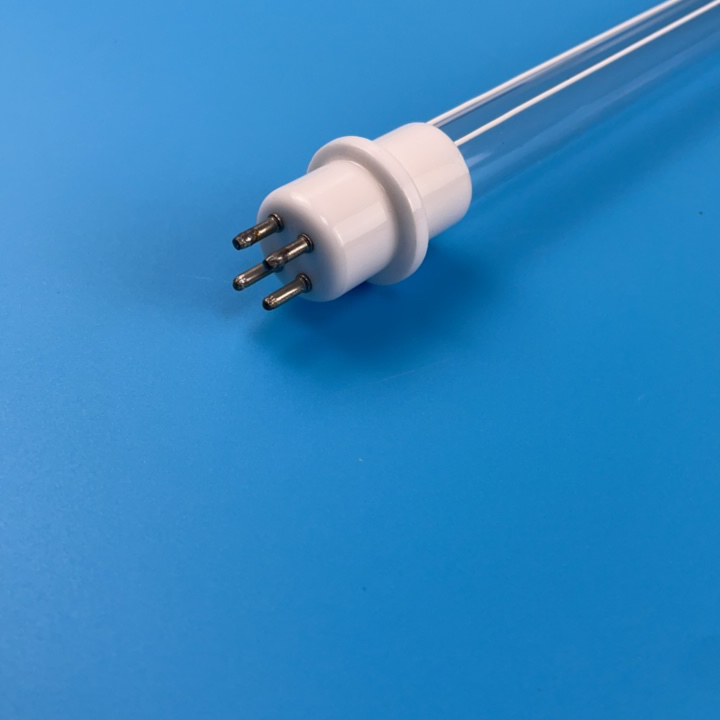

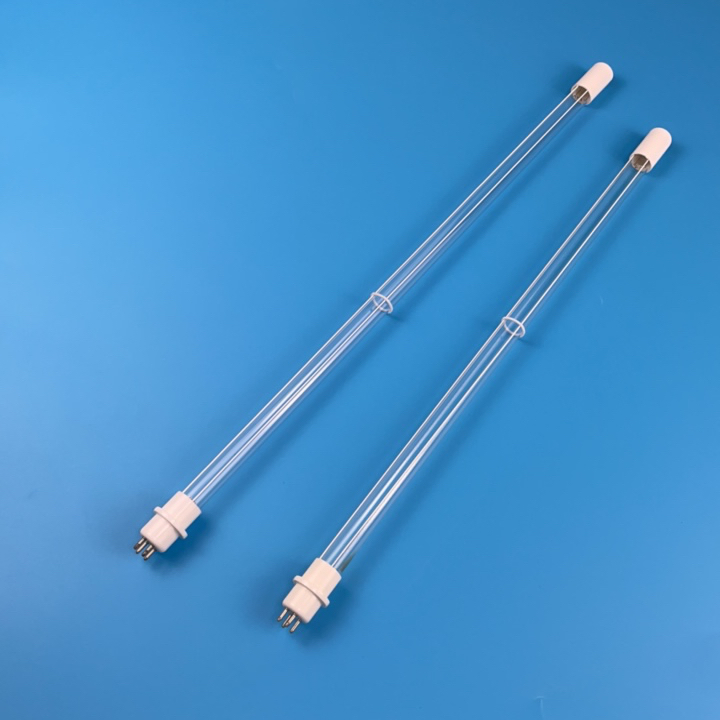

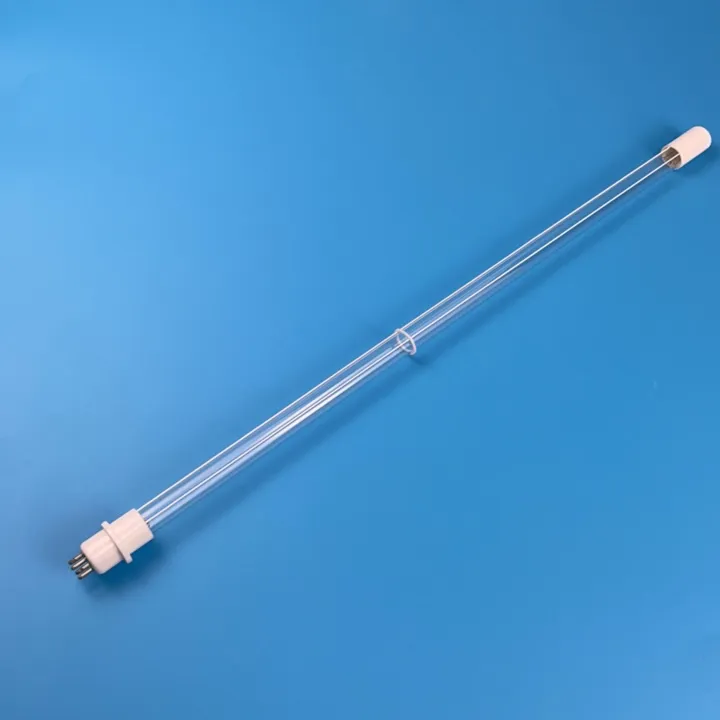

GPH793T5L 793mm 37W International standard UV germicidal lamp (4 pins T5)
Compared to chemical sterilization and disinfection, the advantage of ultraviolet light is high sterilization efficiency. Inactivation is generally completed within a few seconds and does not produce other chemical pollutants.
1
Efficient Sterilization: DNA structure of microorganisms is damaged, preventing reproduction.
2
Optimal Wavelength: 253.7nm UVC light provides the best bactericidal effect.
Common Applications:
- Swimming pool water treatment
- Industry sewage treatment
- Pond water disinfection
- Air purification and conditioning systems
- Drinking water treatment
Technical Data
| Type | Tub Diameter (mm) | BF-EOL (mm) | Power (W) | Current (mA) | Voltage 50/60Hz (V) | Voltage High Freq (V) | UV Output 254nm (W) | Standard Life (h) |
|---|---|---|---|---|---|---|---|---|
| GPH118T5L | 15 | 118 | 6 | 425 | 25 | 21 | 1.4 | 10000 |
| GPH287T5L | 15 | 287 | 14 | 425 | 41 | 34 | 4.0 | 10000 |
| GPH436T5L | 15 | 436 | 21 | 425 | 62 | 51 | 7.3 | 10000 |
| GPH793T5L | 15 | 793 | 37 | 425 | 112 | 92 | 13.0 | 10000 |
| GPH1148T5L | 15 | 1148 | 55 | 425 | 165 | 135 | 20.0 | 10000 |
| GPH1554T5L | 15 | 1554 | 75 | 425 | 220 | 179 | 30.0 | 10000 |

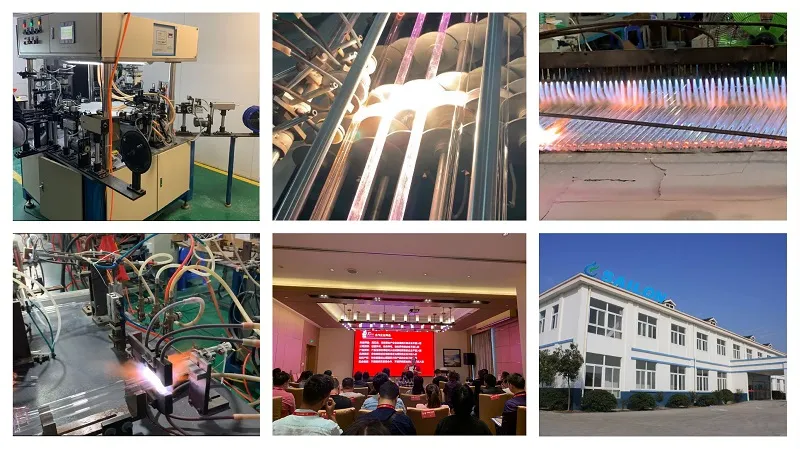

Factory & Quality Control
Our production facility has over 10 years of experience in providing UV solutions. The factory spans 300 square meters and is ISO 9001 certified. We utilize automated high-tech machines for exhausting and clamping across three production lines, ensuring over 90% mechanized precision.
Packaging & Delivery
| Package Size | 55.00cm * 45.00cm * 35.00cm |
| Gross Weight | 9.000kg |
| Transport Package | Export Standard Carton |
Frequently Asked Questions
Q: Can I request samples of the UV Lamp?
A: Yes, samples are available for quality testing.
Q: What is the standard lead time for orders?
A: Samples take 5-7 days, while mass production orders typically require 15-20 days.
Q: Do the UV lamps come with a warranty?
A: Yes, we offer a 1-year guarantee for our UV lamps.
Q: What are the primary uses for these UV Lamps?
A: They are widely used for water treatment, aquariums, medical care, and air purification systems.
Q: What is the difference between normal and amalgam lamps?
A: Amalgam lamps provide 2-3 times higher UV output efficiency at the same length and maintain high intensity stably in varied temperature environments (4-60 degrees).
Q: Do you support OEM or ODM designs?
A: Yes, we accept OEM orders, including custom packaging and logo placement.
