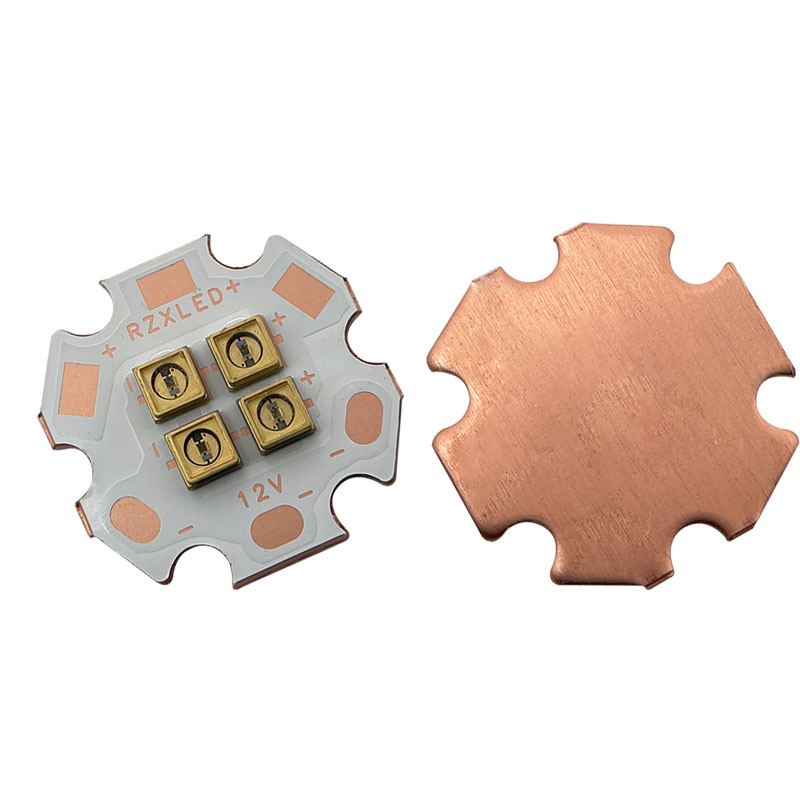

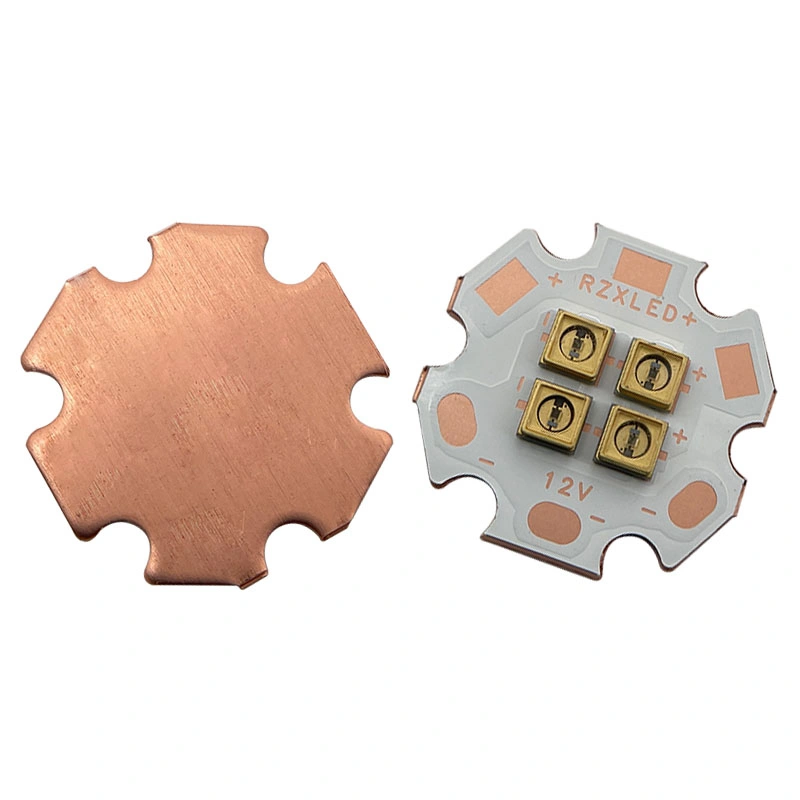

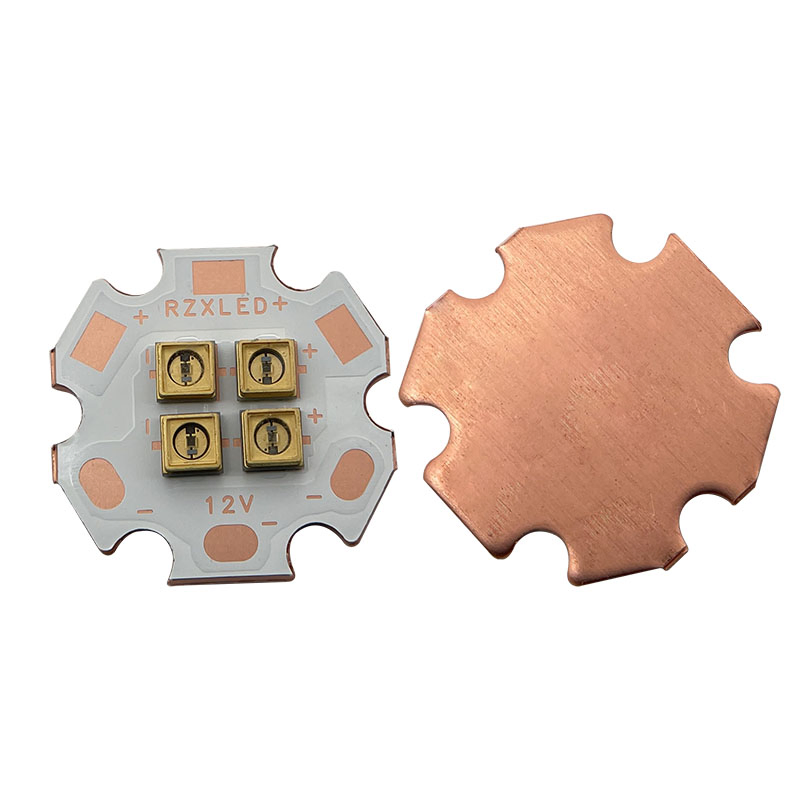

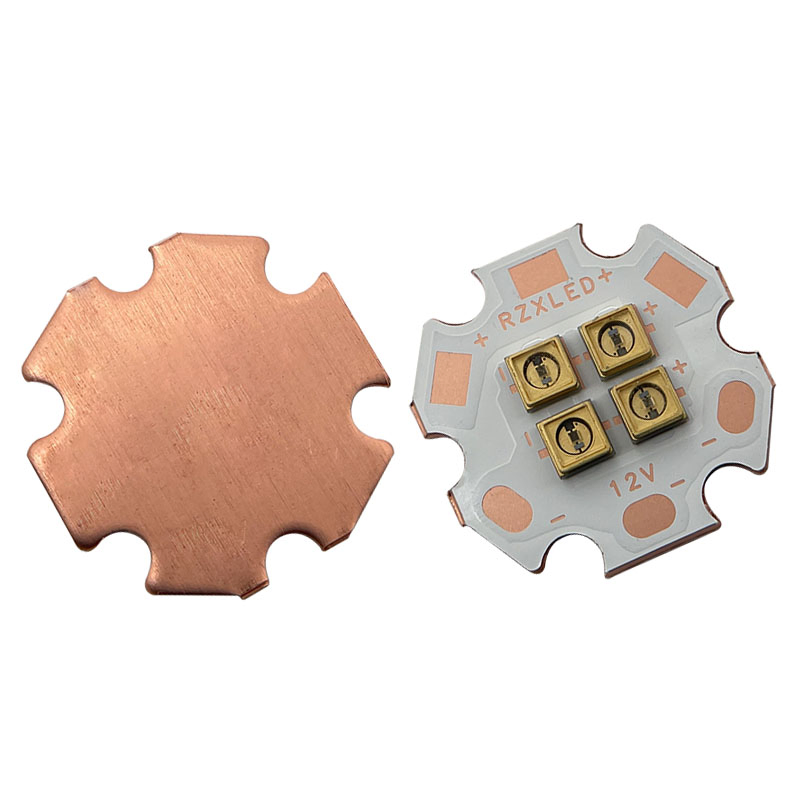

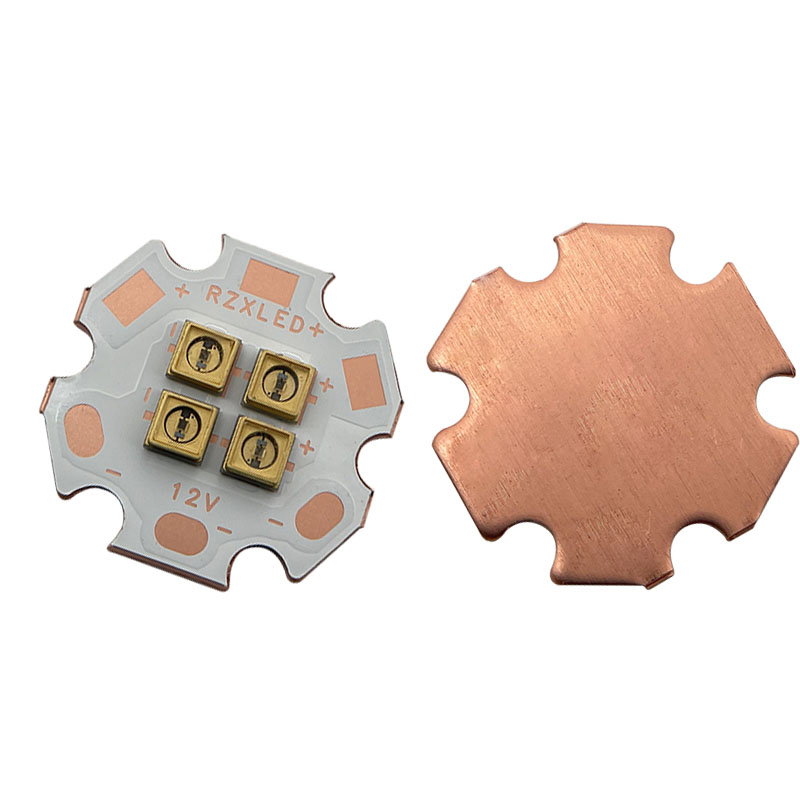

LED 12V 2W 5W 12W 222nm 260nm 275nm 290nm 315nm with 20mm Star PCB UVC Light Boards
Product Description
📋 Basic Information
Model NO.
YS-S3535-255NM-12V
Wavelength
UV-C (250-315nm)
Specification
SMD, 20*20*1.5mm
Material
Quartz 120degree Lens
Certification
RoHS & CE
Power
2W / 4W / 12W
Voltage
12V
Radiation Intensity
Up to 280MW
Origin
China
Production Capacity
300,000 PCS/Day
⚙️ Technical Specifications
✦
Shape: Square Design
✦
Life Span: 10,000 Hours
✦
Beam Angle: 120 Degree Quartz Lens
✦
PCB Size: 20*20*1.5mm
✦
Forward Voltage: DC 10-14V (Standard 12V)
✦
Reflow Temp: 170-230 ºC
| Parameter | Details |
|---|---|
| PCB Dimension | 20*20*1.5mm |
| Power Consumption | 2W / 4W / 12W |
| Peak Wavelength | 250-260NM / 260-270NM / 270-280NM / 280-315NM |
| Radiant Flux | 2W: 40-72mw | 4W: 80-120mw | 12W: 150-280mw |
| Forward Current | 2W: 2*40mA | 4W: 2*150mA | 12W: 2*500mA |
| Spectrum Half Width | 10NW |
🚀 Primary Applications (UVC 250-315NM)
- Surface Sterilization: Medical appliances, infant supplies, smart toilets, refrigerators, escalators, and high-frequency public contact surfaces.
- Water Sterilization: Drinking water tanks, humidifiers, ice machines, and mobile water sterilization modules.
- Air Sterilization: Air purifiers and air conditioning systems.
- Industrial Use: Medical phototherapy, fluorescence spectrum detection, optical sensors, and anti-counterfeit detection.
