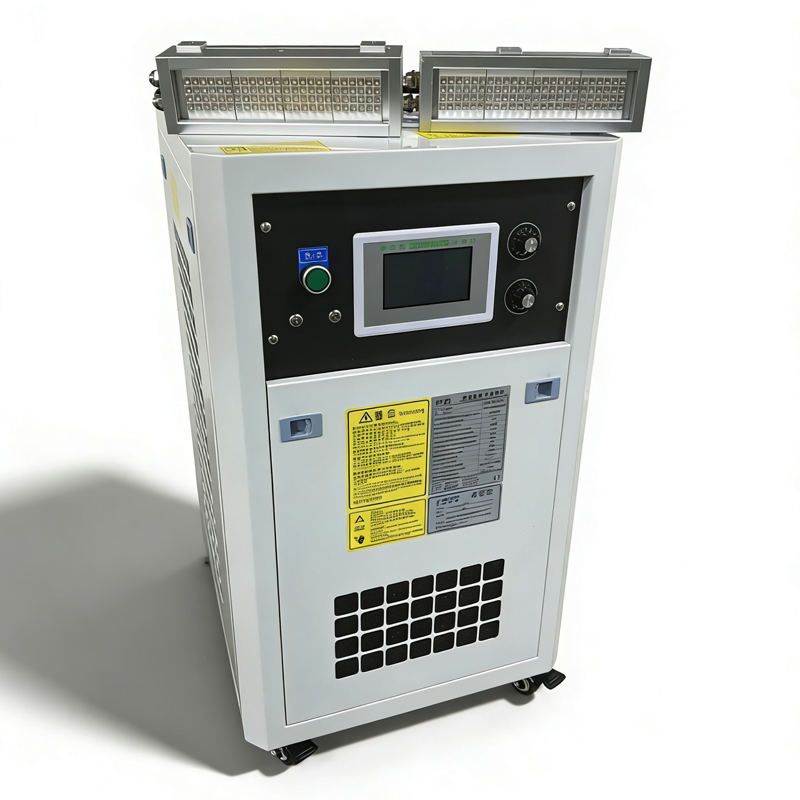

Customizable Water-Cooled 365nm 385nm 395nm UV LED Curing Lamp for Silk Screen Flexographic Ink Printing Equipment
Product Description
■Basic Product Information
Model NO.YGT-CT4800-A2
Item NameCustomizable Water-Cooled UV LED Curing Lamp
WavelengthUV-A (365/385/395/405nm)
Specification5kw, Emissive area: 100*1000mm
Cooling WayWater Cooling
Working Voltage100-277V 50Hz
CertificationCE
Warranty2 Years
MaterialAluminum+UV LED
LED DriverInventronics
Package Size200x200x100 cm
Gross Weight850.00kg
✦UV LED Light Source Characteristics
✓
Cold light source, no heat radiation, ideal for bonding heat-sensitive materials.
✓
Instant on, no preheating required, with irradiance over 18,000mW/cm².
✓
Compact size allows easy integration into fully automated production lines.
✓
Environmentally friendly: No infrared radiation or harmful gases, ROHS compliant.
✓
Over 20,000 hours lifespan, significantly reducing maintenance costs.
✓
Equipped with flexible cables for installation in movable equipment parts.
⚙Technical Parameters
| Parameter | Specification Details |
|---|---|
| UV LED Power | 4000W |
| Chiller Power | 1360W |
| LED Wavelength | 365nm / 385nm / 395nm |

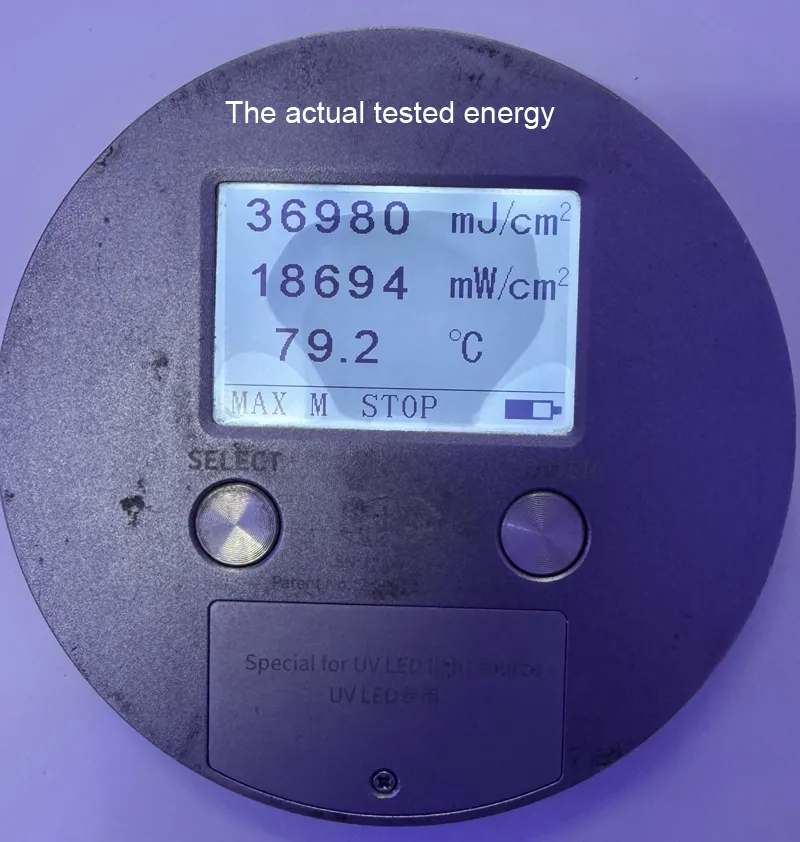

| Luminous Power | 18000mW/cm² |
| Heat-dissipating Method | Water-cooling |
| Emissive Size | 100*1000mm |

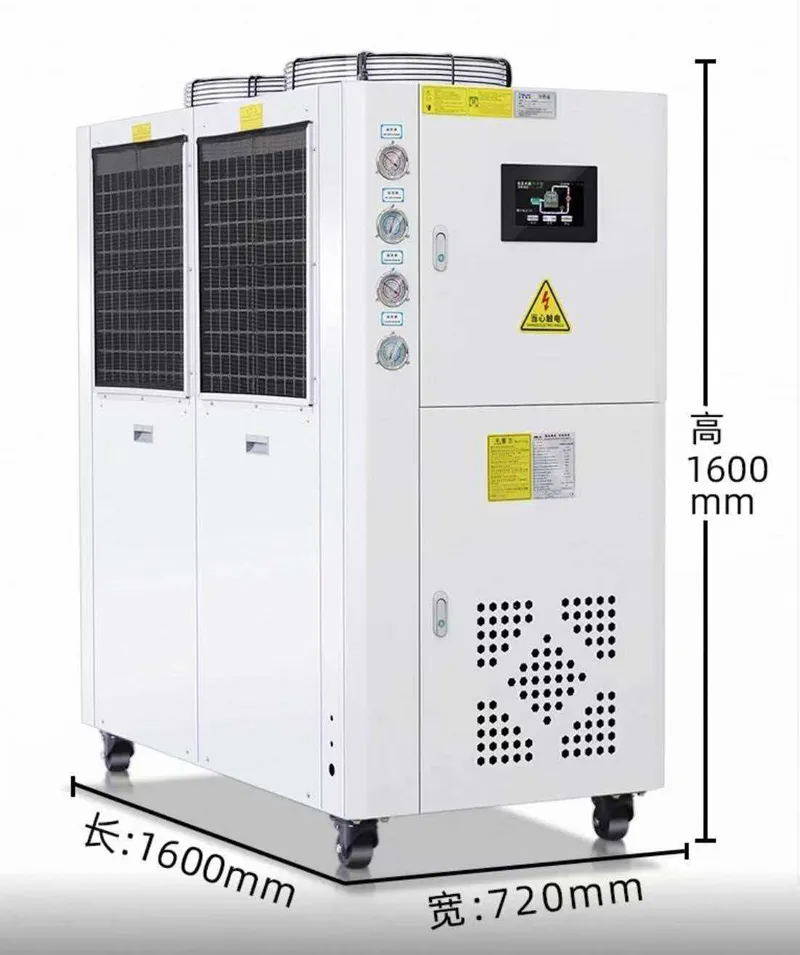

| Chiller Size | L1600mm * W1600mm * W750mm |
| Operating Voltage | AC220V ± 10%, 50Hz |
| Environment Temp | -15 ~ 60 ºC |

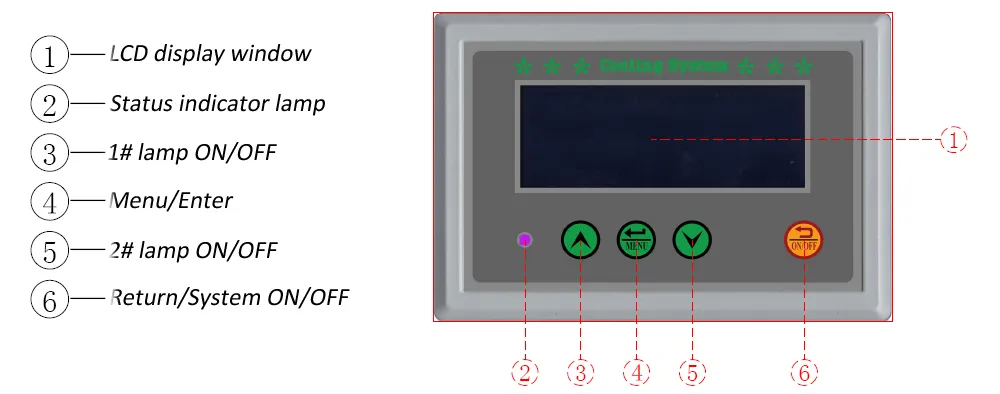

◈Controller & Safety Functions
- Real-time monitoring of cooling and set temperatures.
- Automatic memory of parameters after power failure.
- Overload, phase loss, and reverse protection functions.
- Dot matrix LCD display with English interface support.
- Standard MODBUS-RTU communication (485 interface).
⚠Troubleshooting & Maintenance
| Fault Phenomenon | Possible Cause | Exclusion Method |
|---|---|---|
| Driver indicator light off | Fuse burnt out | Check and replace fuse in the rear fuse box. |
| Lamp head does not light | No voltage output | Check LED channels with a multimeter. |
| Lamp head does not light | Signal port disconnected | Check control signal interface for breaks. |
?Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory with our own production lines dedicated to UV curing technology.
Can the product be customized?
Yes, all our UV lamps and curing systems can be customized based on the specific power, wavelength, and size requirements you provide.
What is the typical delivery time?
Orders are processed efficiently. Depending on the quantity, products can be shipped as fast as 3 days after payment confirmation.
Do you provide OEM services?
We provide comprehensive OEM services, including custom logo printing and tailored packaging solutions to meet your branding needs.
What is your after-sales service policy?
Every unit undergoes strict quality control before shipping. If any damage occurs during transport or quality issues arise, we provide re-delivery services.
What is the lifespan of the UV LED lamps?
Our UV LED curing lamps offer an extensive lifespan of over 20,000 hours, which is far superior to traditional mercury lamps.
