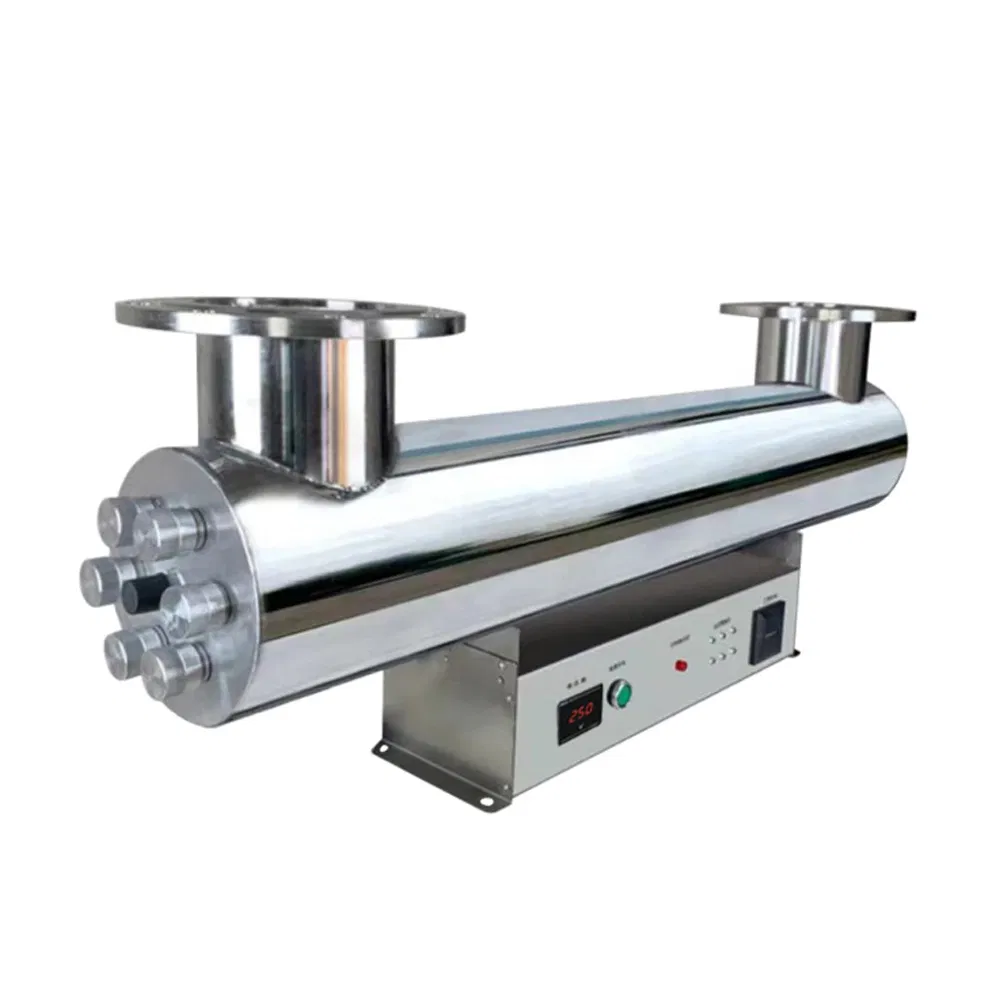

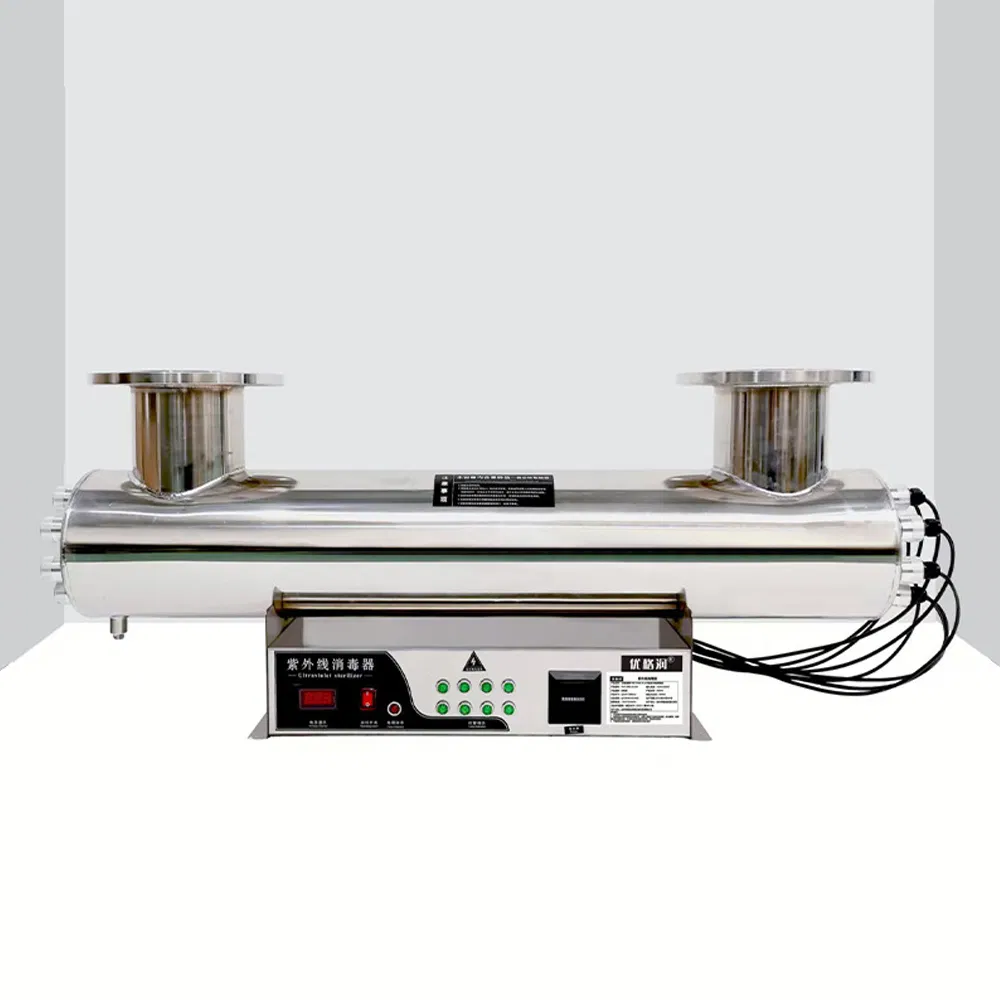

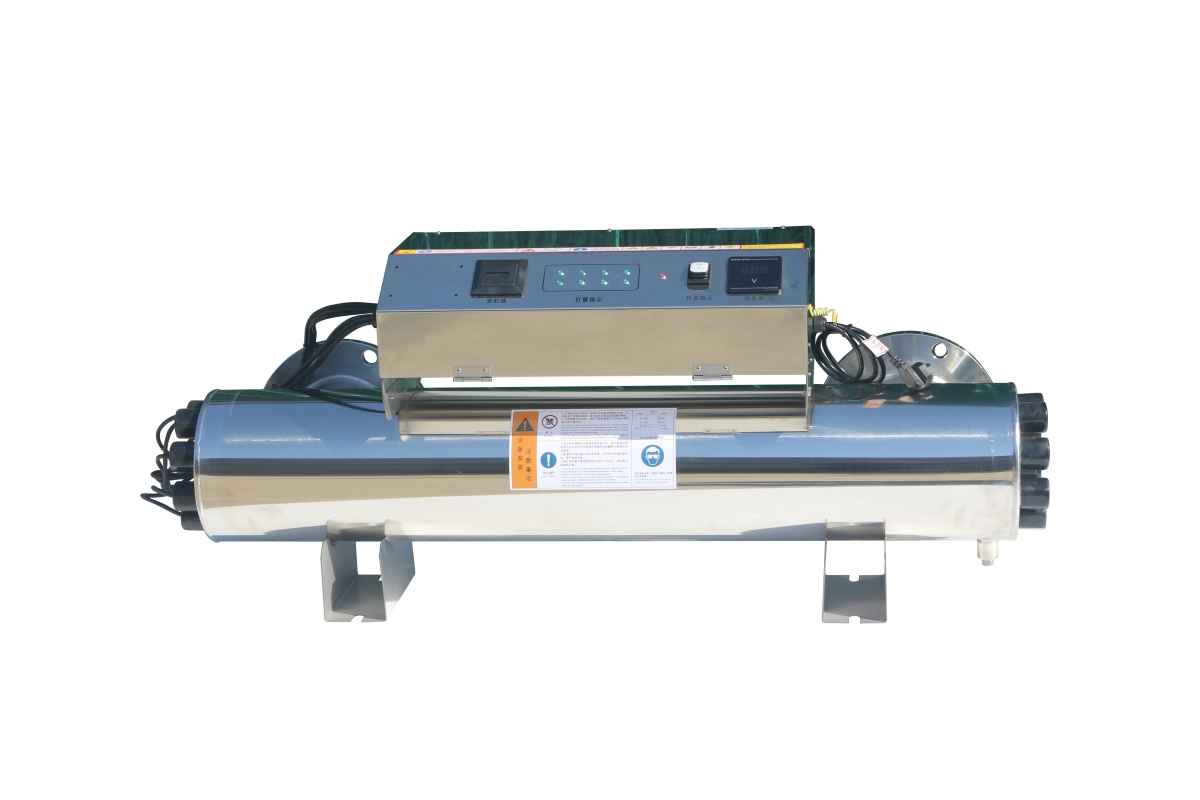

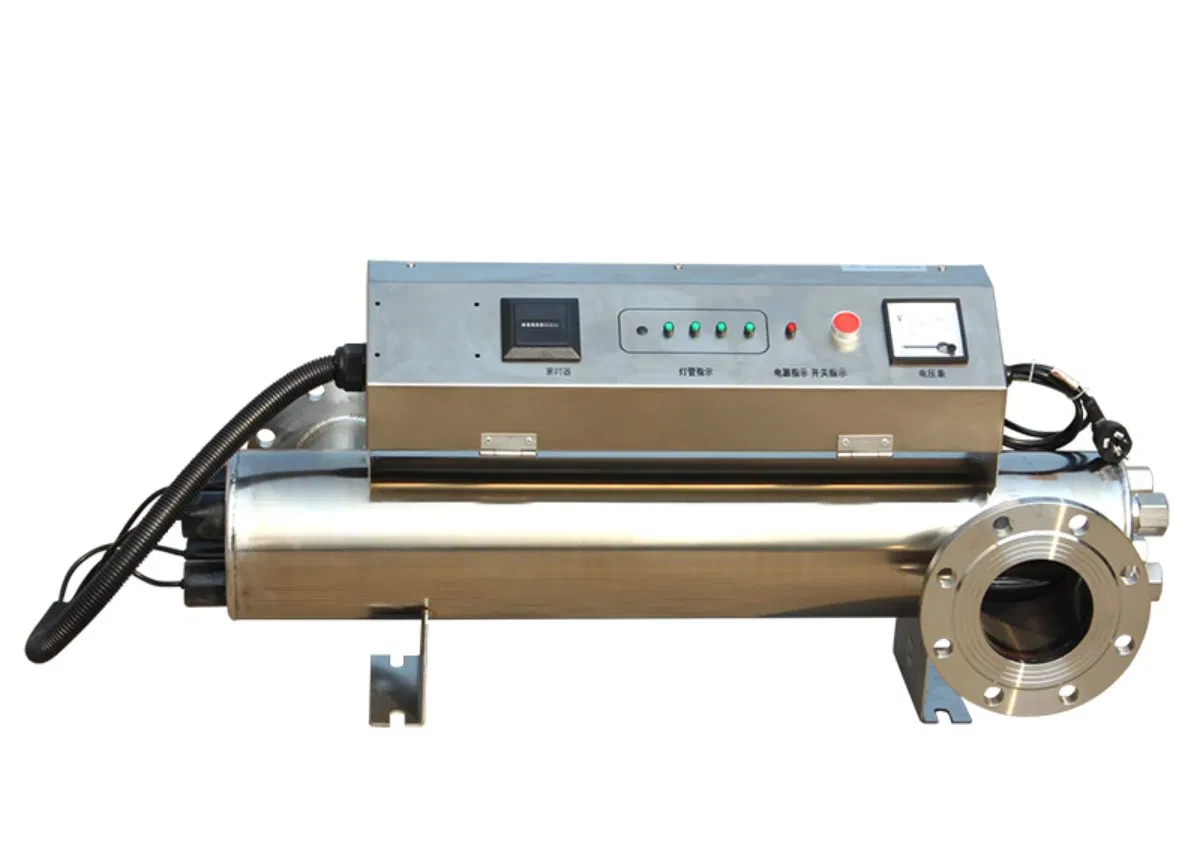

The UV Lamp Sterilizes and Disinfects Water
Product Description

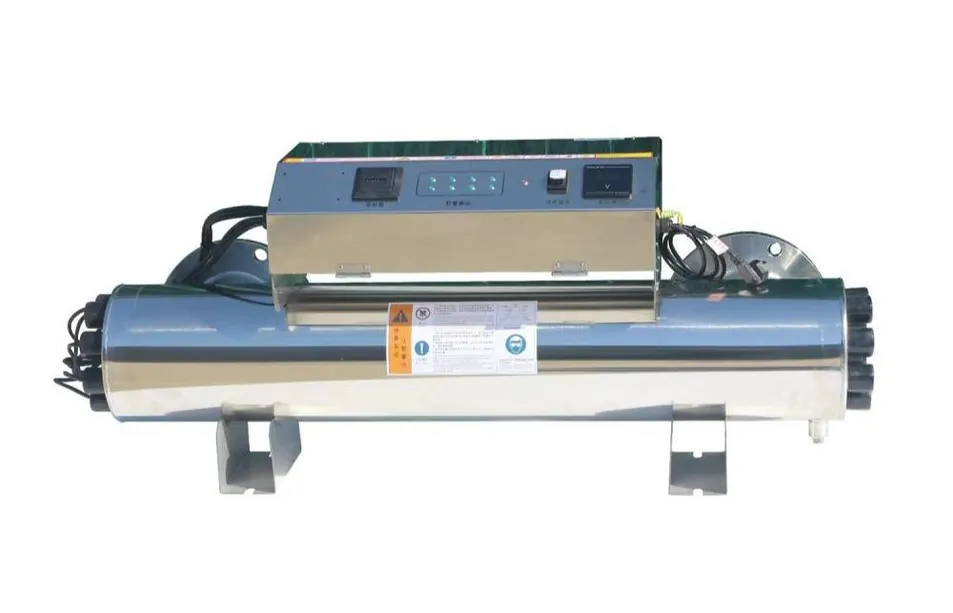

Ultraviolet (UV) light consists of three bands: UVA, UVB, and UVC. The UVC band is typically used for sterilization and disinfection. UV sterilizer uses UVC light to irradiate the water flow, disrupting the DNA or RNA structure of microorganisms in the water, thereby killing them.
Applicable to drinking purified water, ultrapure water for electronics, pharmaceuticals, and biotechnology industries, wastewater treatment, swimming pool water and landscape water disinfection.
| Model | Specifications (mm) | Flange connection (mm) | Flange C-C (mm) | Rated power (W) |
|---|---|---|---|---|
| ECH-UV-75-1 | 89*900 | DN50 | 675 | 75 |
| ECH-UV-75-2 | 108*900 | DN50 | 675 | 150 |
| ECH-UV-75-3 | 133*900 | DN100 | 620 | 225 |
| ECH-UV-75-5 | 159*900 | DN100 | 620 | 375 |
| ECH-UV-120-6 | 219*1200 | DN150 | 855 | 720 |
| ECH-UV-120-8 | 219*1200 | DN150 | 855 | 960 |
| ECH-UV-120-10 | 273*1200 | DN200 | 800 | 1200 |
| ECH-UV-120-14 | 273*1200 | DN200 | 800 | 1680 |
| ECH-UV-150-14 | 273*1600 | DN200 | 1200 | 2100 |
| ECH-UV-150-20 | 377*1600 | DN300 | 1075 | 3000 |
| ECH-UV-320-18 | 377*1600 | DN300 | 1075 | 5760 |
1. Custom manufacturing available for pressure > 6 kg.
2. Power supply: 220V/50Hz, UV lamp lifespan: ≥ 9000 hours.
3. Suitable for tap water, purified water, and pharmaceutical water.
4. Efficiency depends on water transparency, impurity content, and temperature.
5. Manual or automatic cleaning devices can be configured.
Founded in 1994, we are a professional service provider of integrated solutions for water treatment technology and healthy space environment technology. We hold certifications for quality, environment, and health management systems and are recognized as a High-tech Enterprise.
- OEM/ODM capabilities and turnkey project solutions
- Competitive pricing & bulk discounts

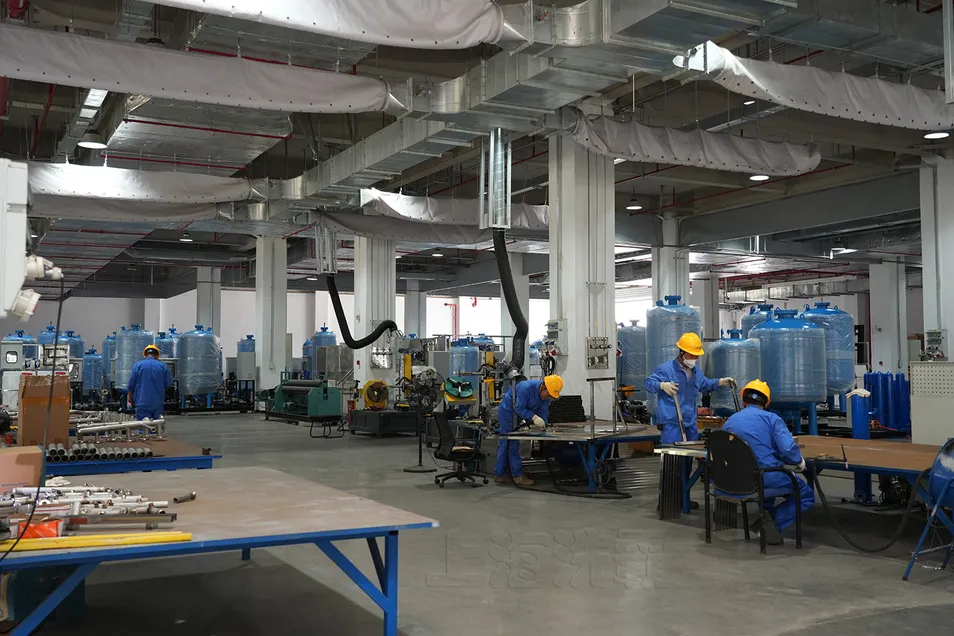

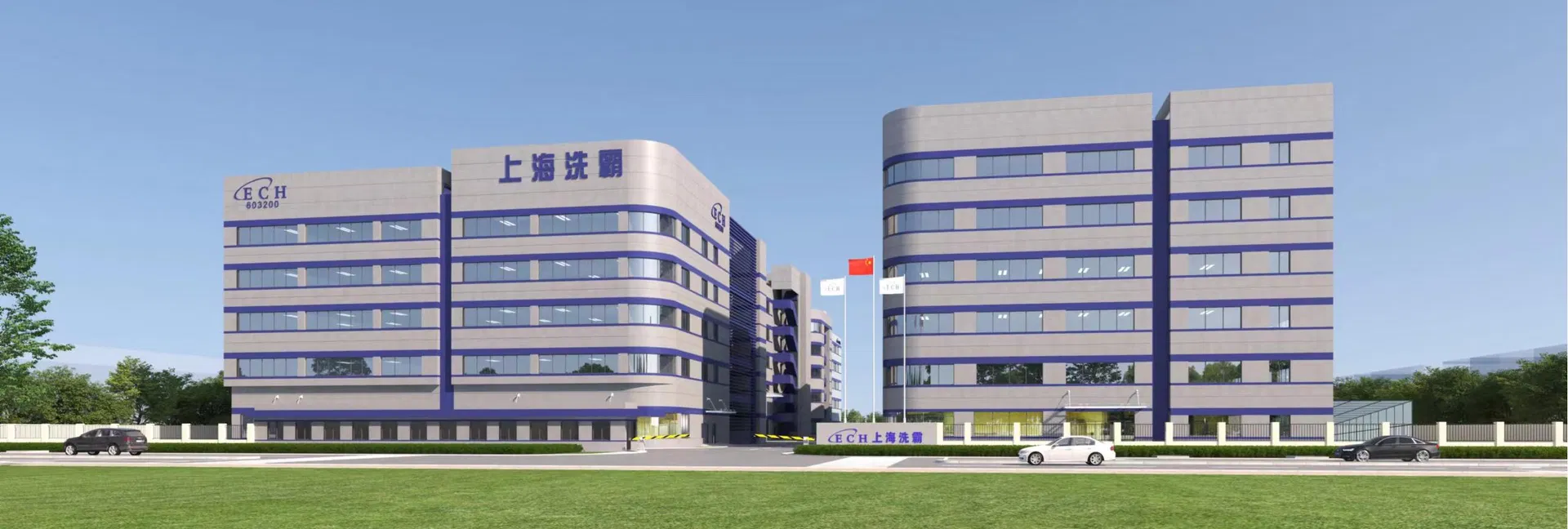

- 31,000 square meters manufacturing site
- International project experience in USA, Southeast Asia, and Middle East
As of June 30, 2024, our group holds 126 authorized patents, including 60 invention patents and 66 utility model patents, alongside 38 software copyrights. We operate a dedicated water treatment technology research center providing comprehensive operational technology services.
