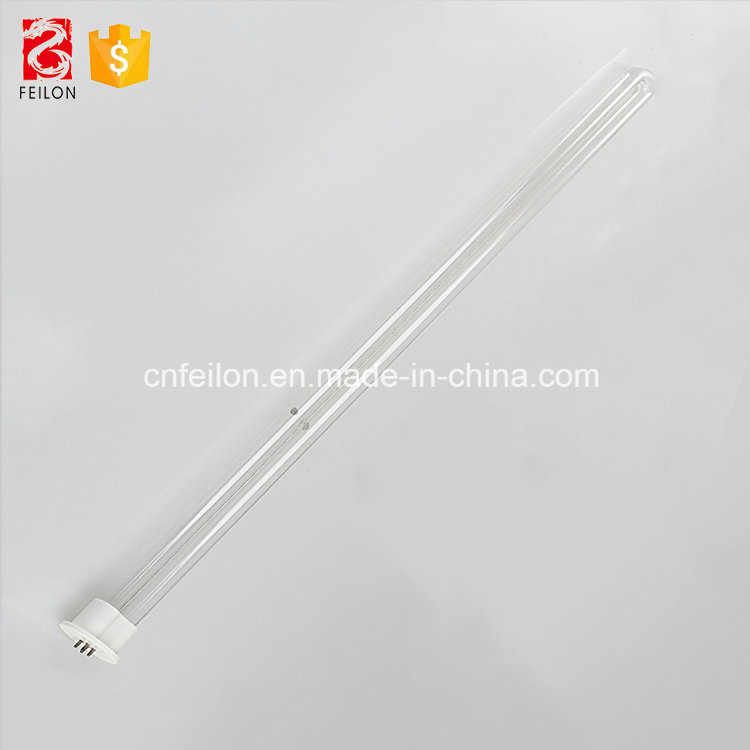

Germicidal Light Bulb UV Lamp Fixture with Killing Bacterium
Product Description
Basic Specifications
Product Description

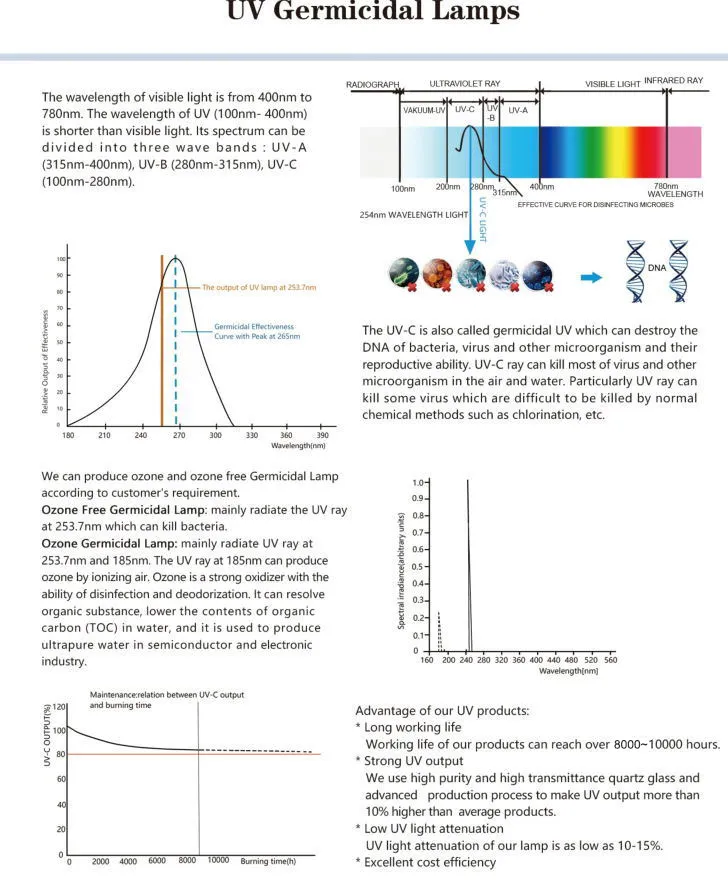

Ultraviolet sterilization is the irradiation of ultraviolet rays, which destroys and changes the DNA (deoxyribonucleic acid) structure of microorganisms, so that the bacteria immediately die or cannot reproduce the offspring and achieve the purpose of sterilization. The true bactericidal effect is UVC ultraviolet light, because the C-band ultraviolet ray is easily absorbed by the DNA of the living body, and the ultraviolet ray of about 253.7 nm is optimal.
UV germicidal lamps with different bases, diameters, and lengths are available, which offer excellent efficiency. We supply two types of UV lamps, emitting UV-C wavelength at 253.7nm, ozone-free; while emitting UV-C wavelength both at 253.7nm and 185nm, ozone-generating.
Technical Specification
| Lamp Type | Tube Diameter (mm) | Lamp Length (mm) | Lamp Power (W) | Lamp Current (mA) | Lamp Voltage (V) | 254nm UV output@1M (μw/cm²) | Average Life (Hours) |
|---|---|---|---|---|---|---|---|
| ZW41D15W-Z843 | 15 | 843 | 41 | 425 | 98 | 136 | 8000 |
| ZW55D15W-Z1149 | 15 | 1149 | 55 | 425 | 135 | 174 | 8000 |
| ZW75D15W-Z1554 | 15 | 1554 | 75 | 425 | 179 | 223 | 8000 |
| ZW87D15W-Z843 | 15 | 843 | 87 | 800 | 110 | 260 | 8000 |
| ZW95D15W-Z893 | 15 | 893 | 95 | 800 | 115 | 270 | 8000 |
| ZW155D15W-Z1554 | 15 | 1554 | 155 | 800 | 195 | 380 | 8000 |
| ZW150D15W-Z810 | 15 | 810 | 150 | 800 | 220 | 360 | 8000 |
Applications
• Air purifiers, disinfection cabinets, microwave ovens, and air conditioners.
• Sterilization of air and objects in schools, hotels, restaurants, homes, and offices.

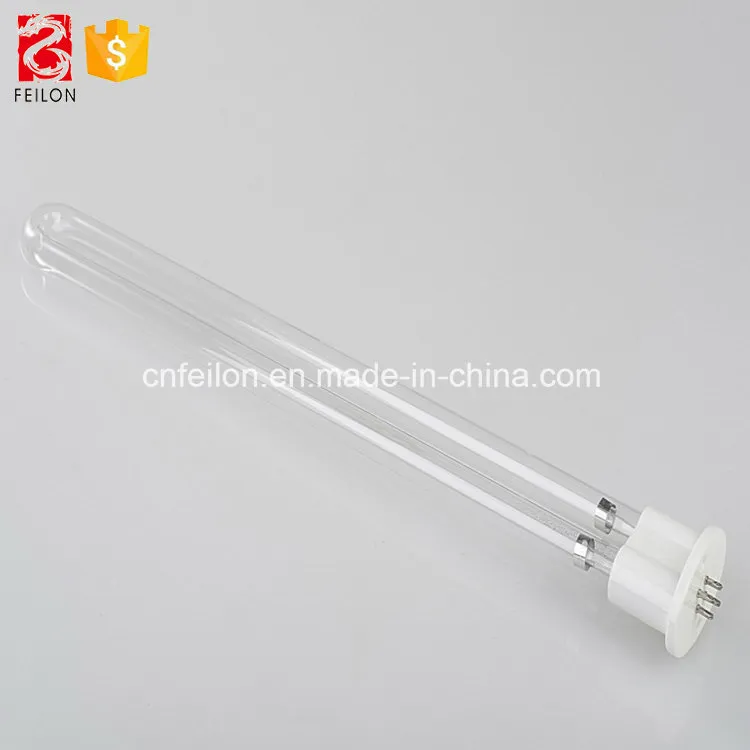

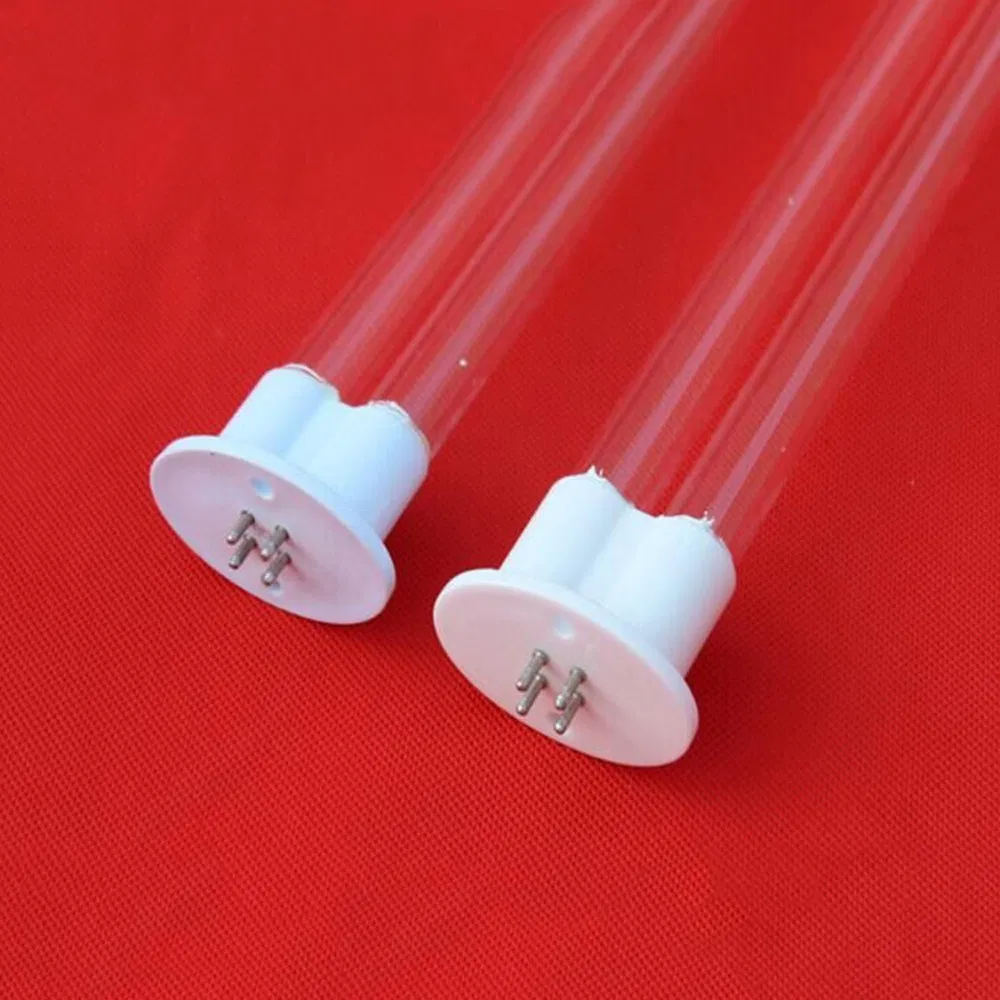

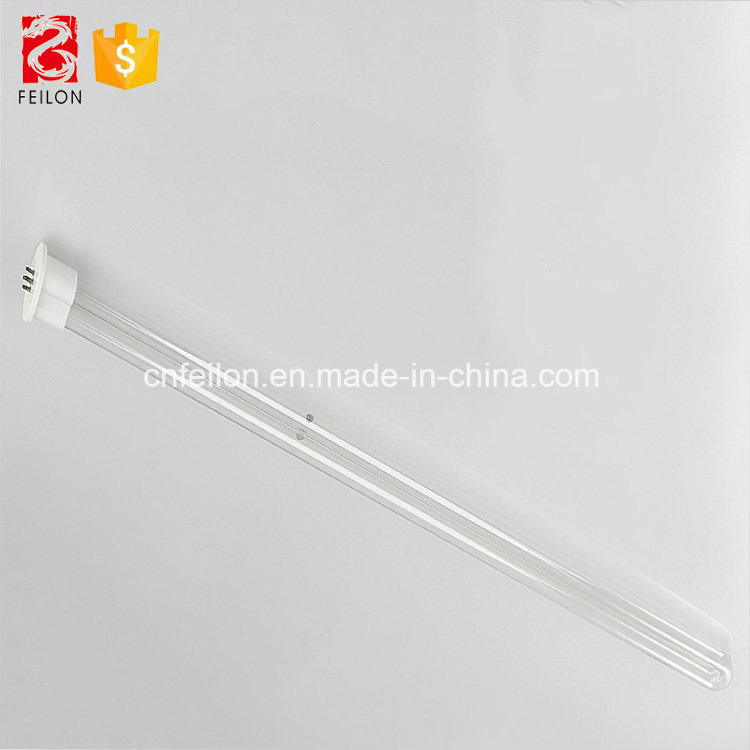

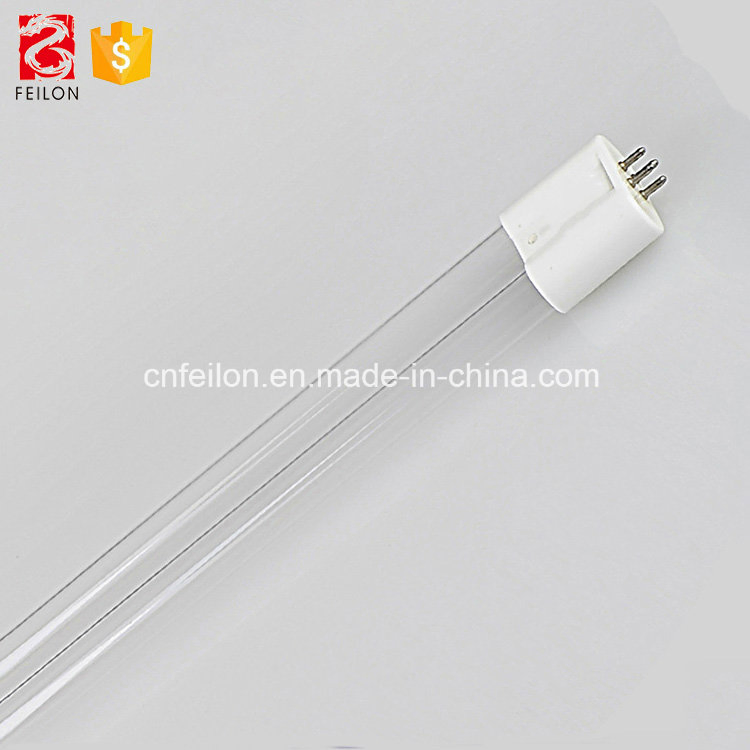

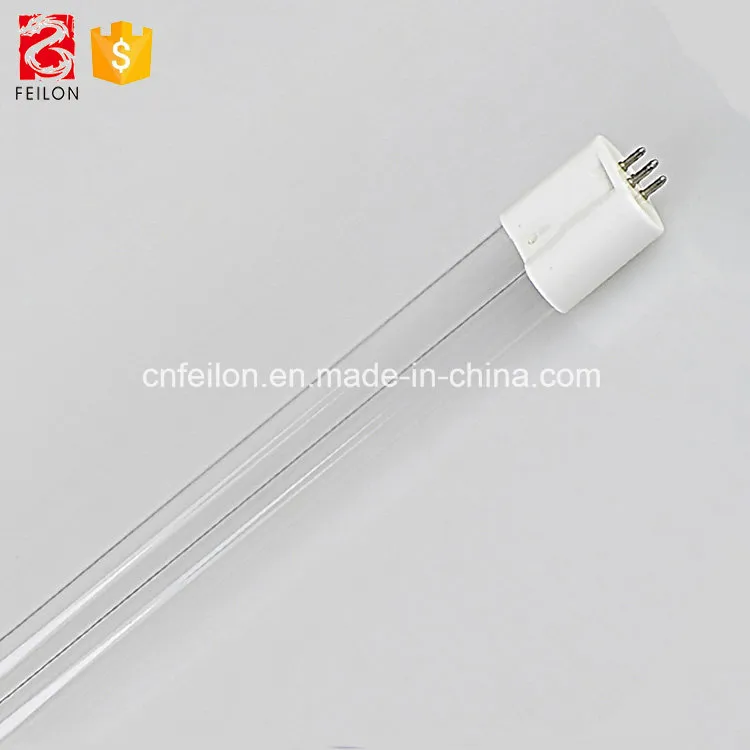

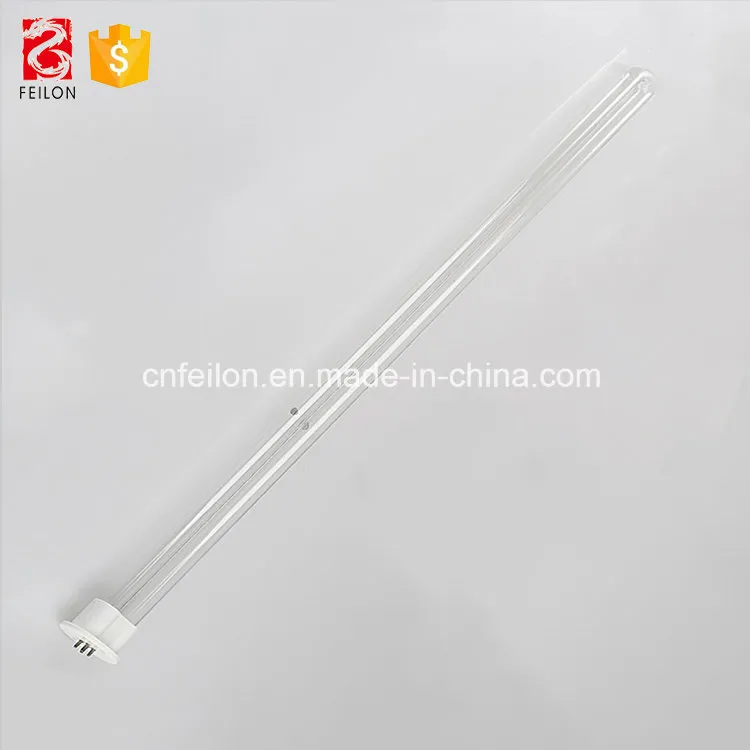

Product Photos
Related Products & Ballasts

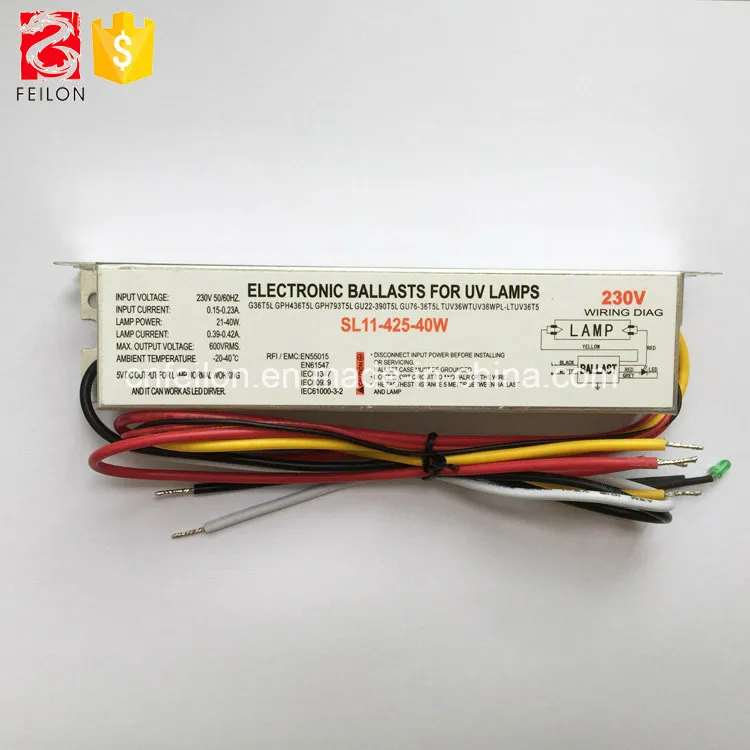

Specification: DC12V/24V, 110V/220VAC UV Ballast for UV lamps.
